A-22 Optional Equipment
Are you reading the aircraft pricelist you got from your dealer and try to find out how the proposed options look really like?
This is the place you can see it.
Wing fuel tanks: |
||
Type | Weight difference | Remarks |
Standard | ||
90 litres | 2 x 45 litres | |
Options | ||
114 litres | 2 x 57 litres |

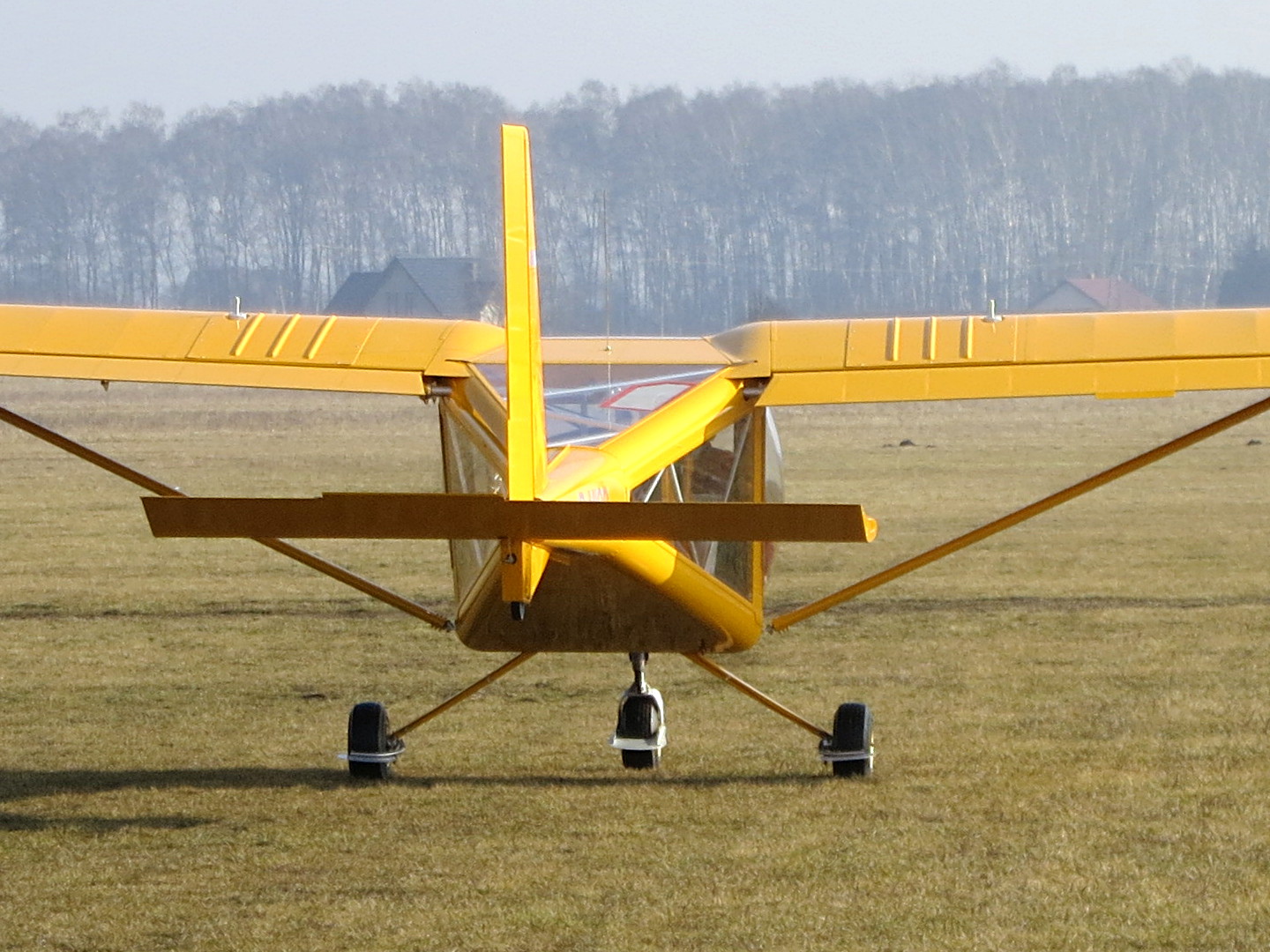

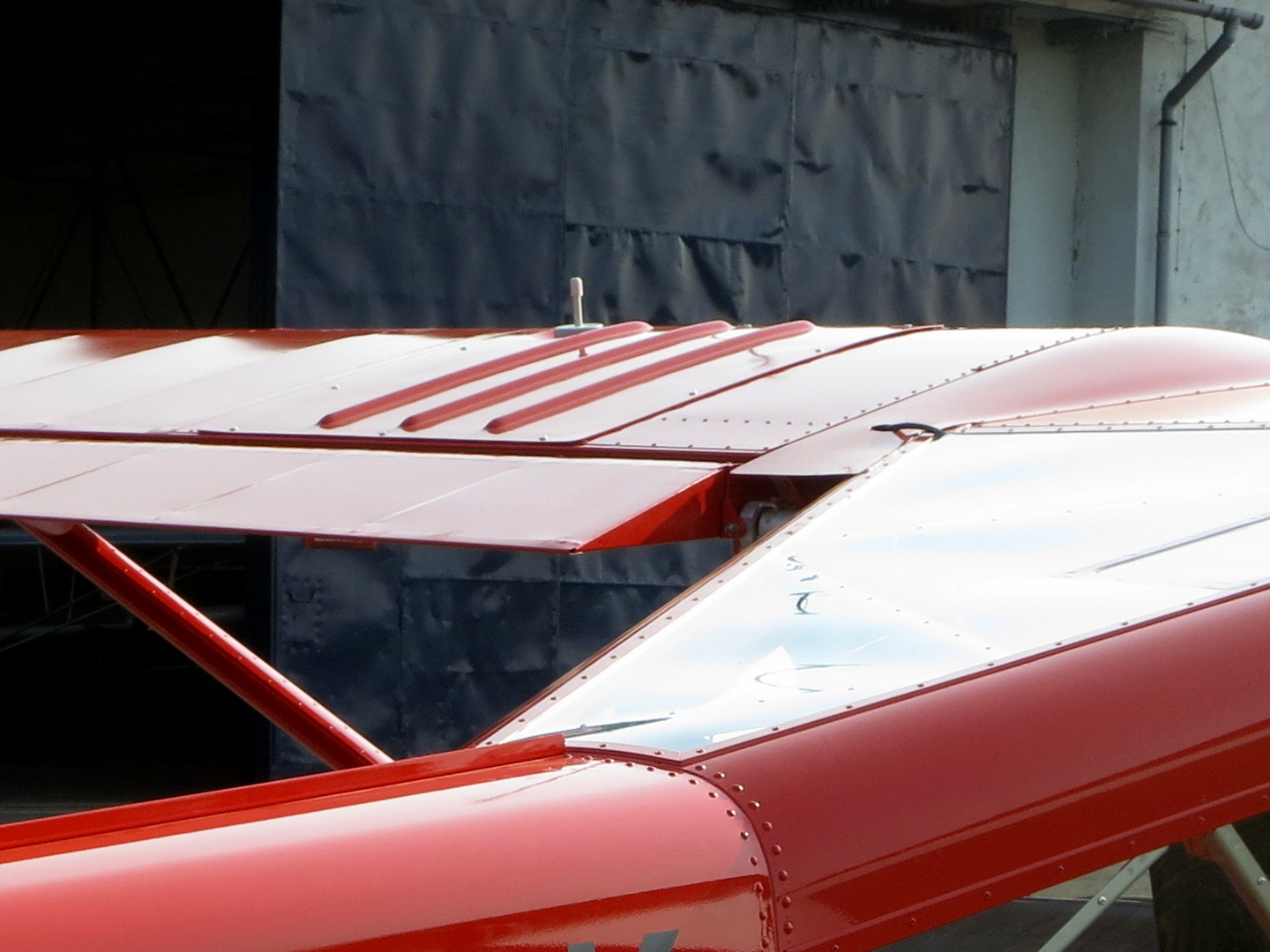

Standard tanks
Standard tanks
Standard tanks

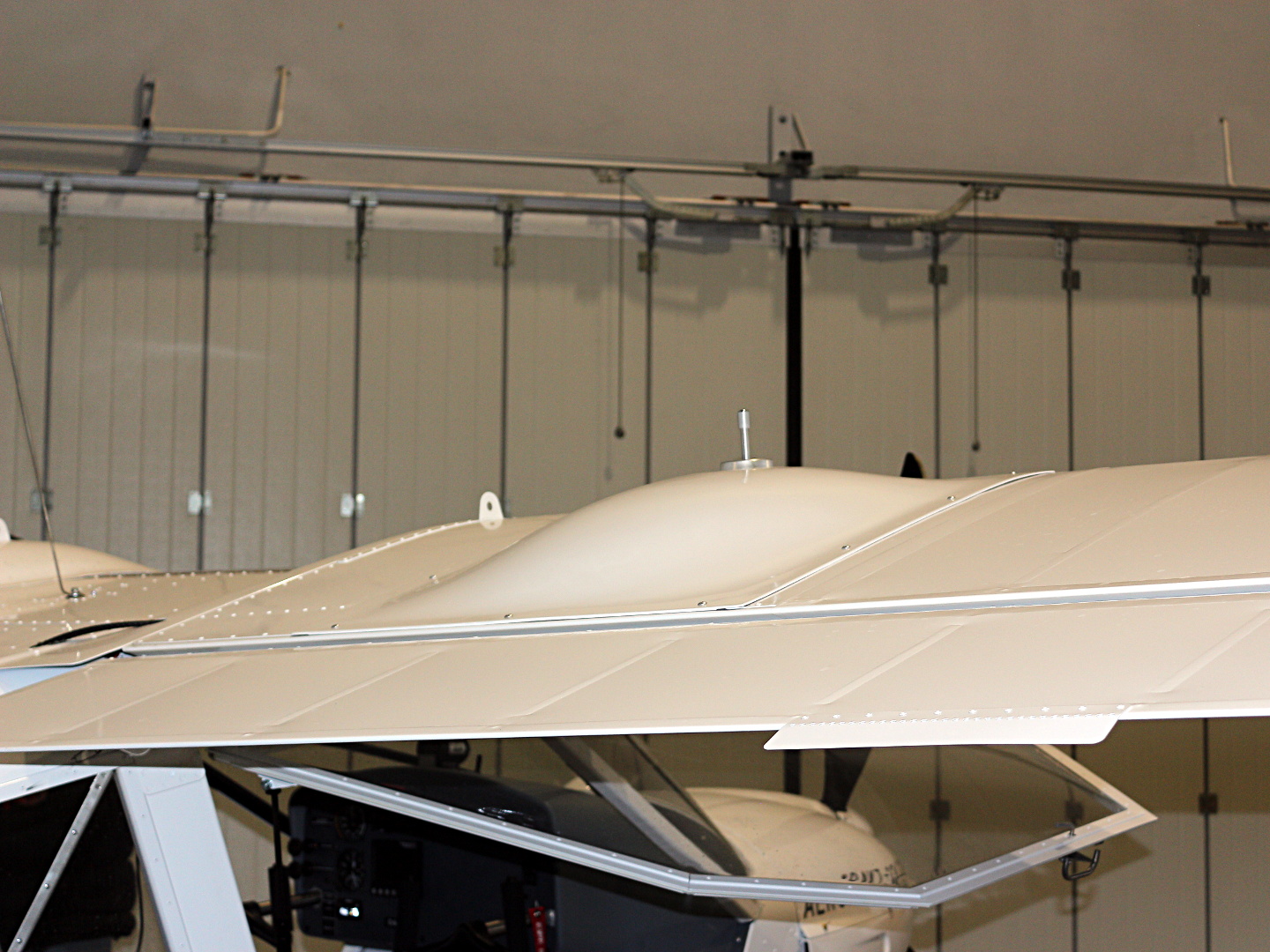

Enlarged fuel tanks
Enlarged fuel tank
Enlarged fuel tank
Enlarged fuel tanks
Enlarged fuel tanks
Enlarged fuel tanks
-
Standard tanks 2 x 45 litres
-
Standard tanks 2 x 45 litres
-
Standard tanks 2 x 45 litres
-
Optional tanks 2 x 57 litres
-

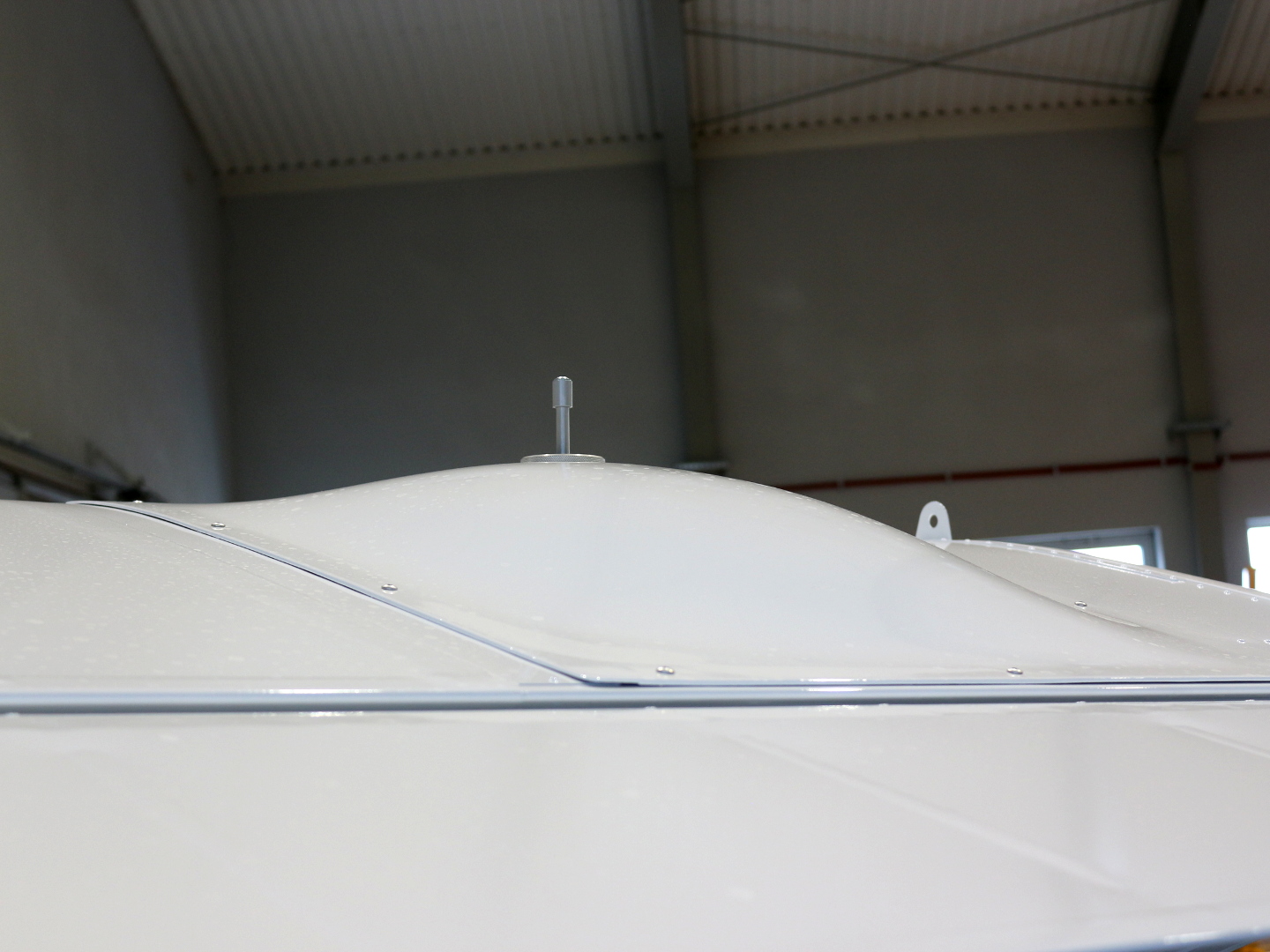

Detailed view of enarged fuel tank
-
Detailed view of enarged fuel tank
-
Optional tanks 2 x 57 litres
-
Optional tanks 2 x 57 litres
-
Optional tanks 2 x 57 litres
Wheels: 4 options are possible. The difference is in size of tires. The rims themselves are identical for all variations. Please remember that if in future you want to have bigger/smaller wheels you also need to have the front leg replaced. Its length is correlated to diameter of wheels |
|||
Type | Diameter | Weight difference | Remarks |
Standard | |||
13 x 5.00-6 | ca. 325 mm / 13 in. | Cheng Shin tire | |
Options | |||
15 x 6.00-6 | ca. 366 mm / 14,4 in. | + 2,9 kg | Cheng Shin tire |
15 x 6.00-6 | ca. 371 mm / 14,6 in. | AirTrac tire | |
21 x 8.00-6 | ca. 495 mm / 19,5 in. | + 9 kg | Carlisle tire (tundra) |

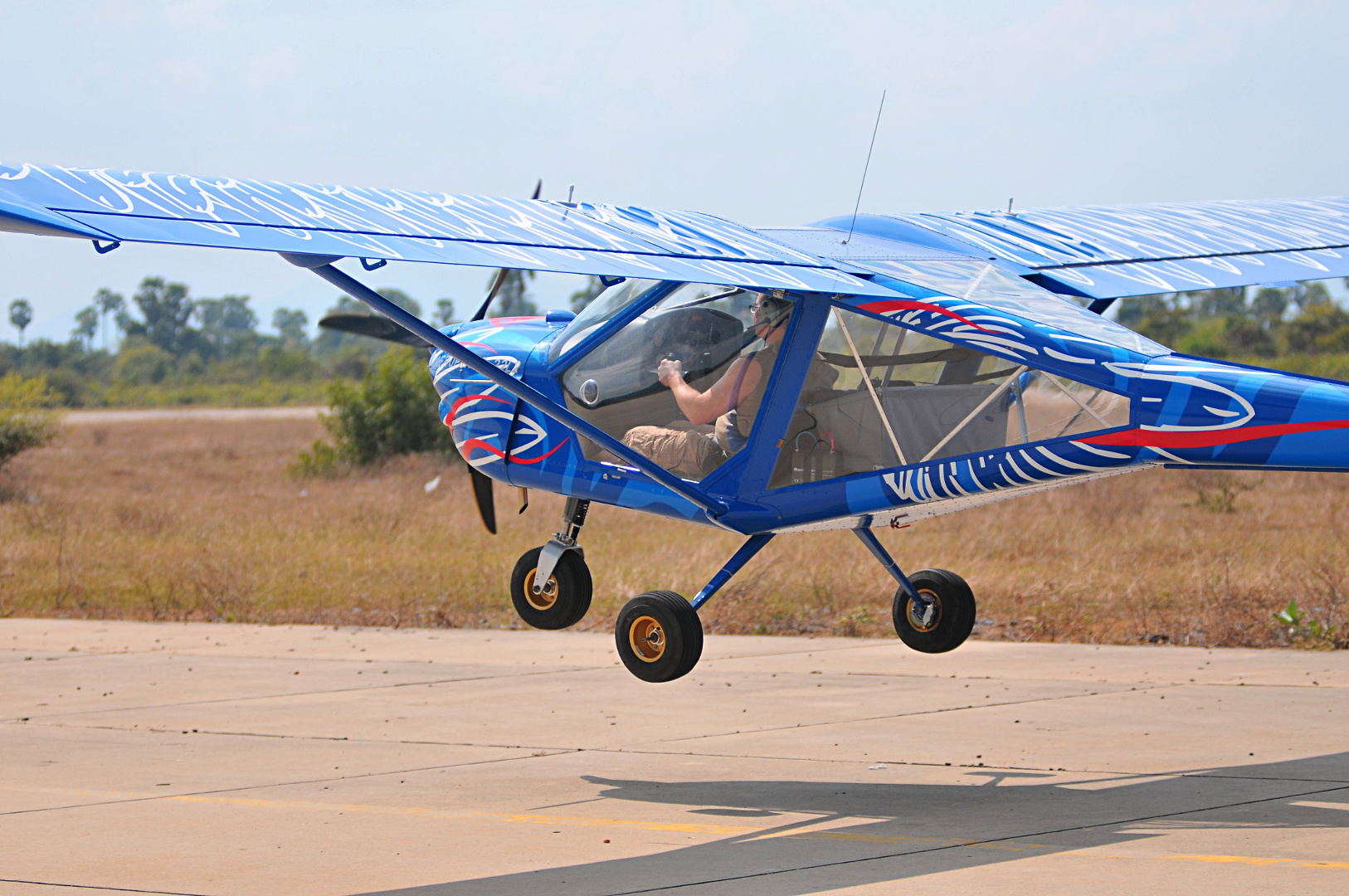

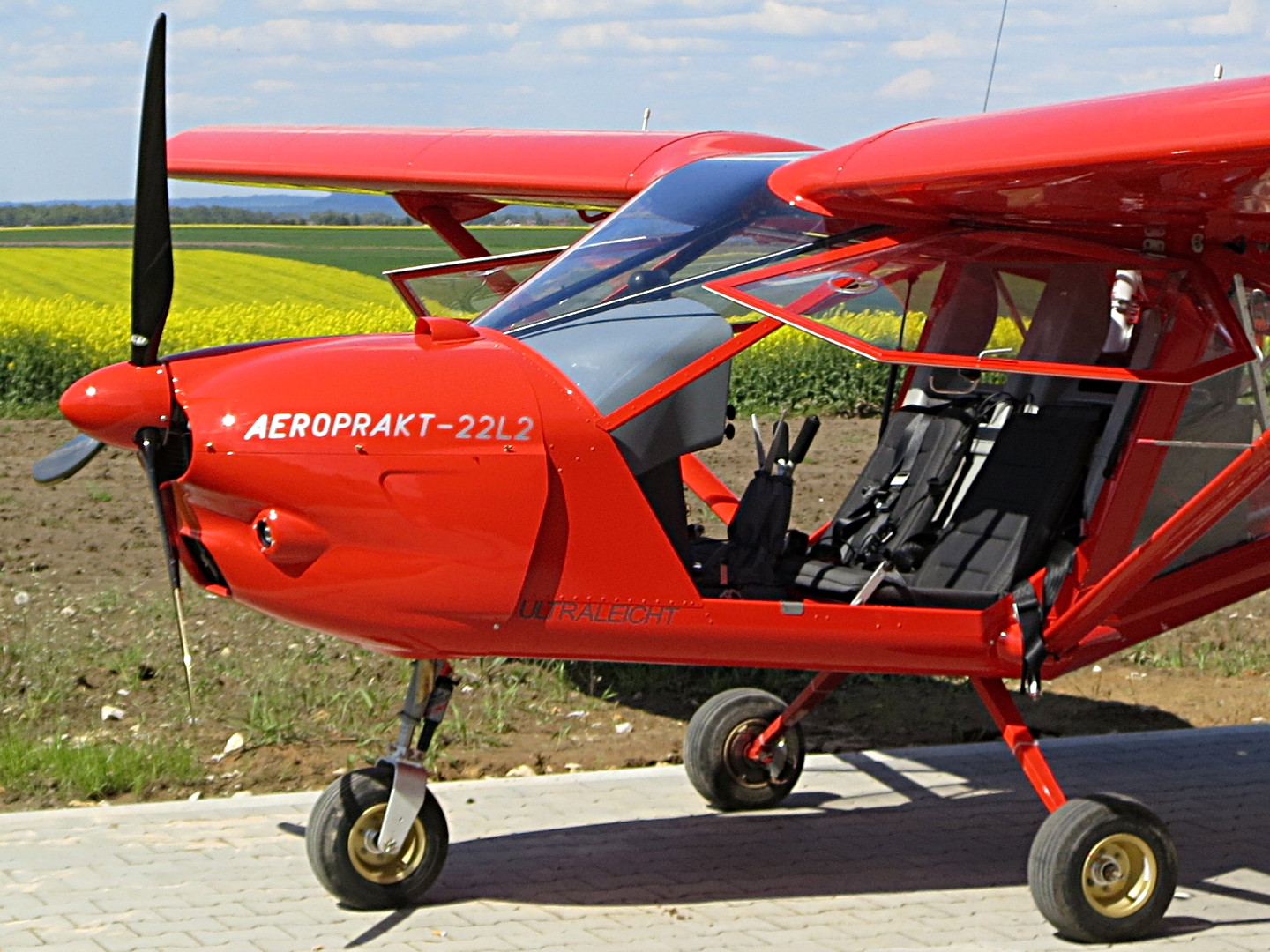

All sizes
All sizes
All sizes
All sizes
Middle size
Middle size
Middle size
Small size
Small size
Tundra tyre
Small size
Middle size
-

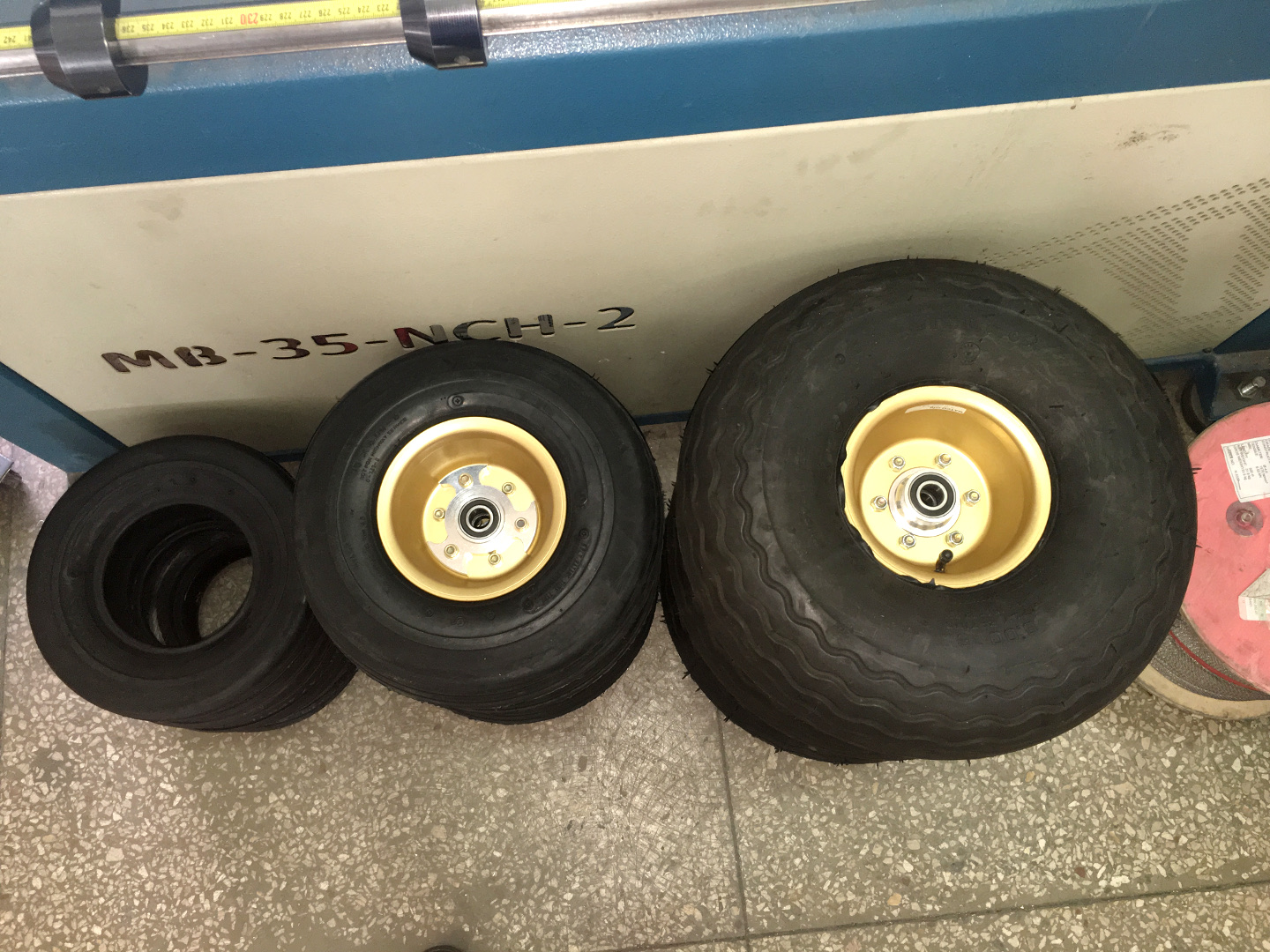

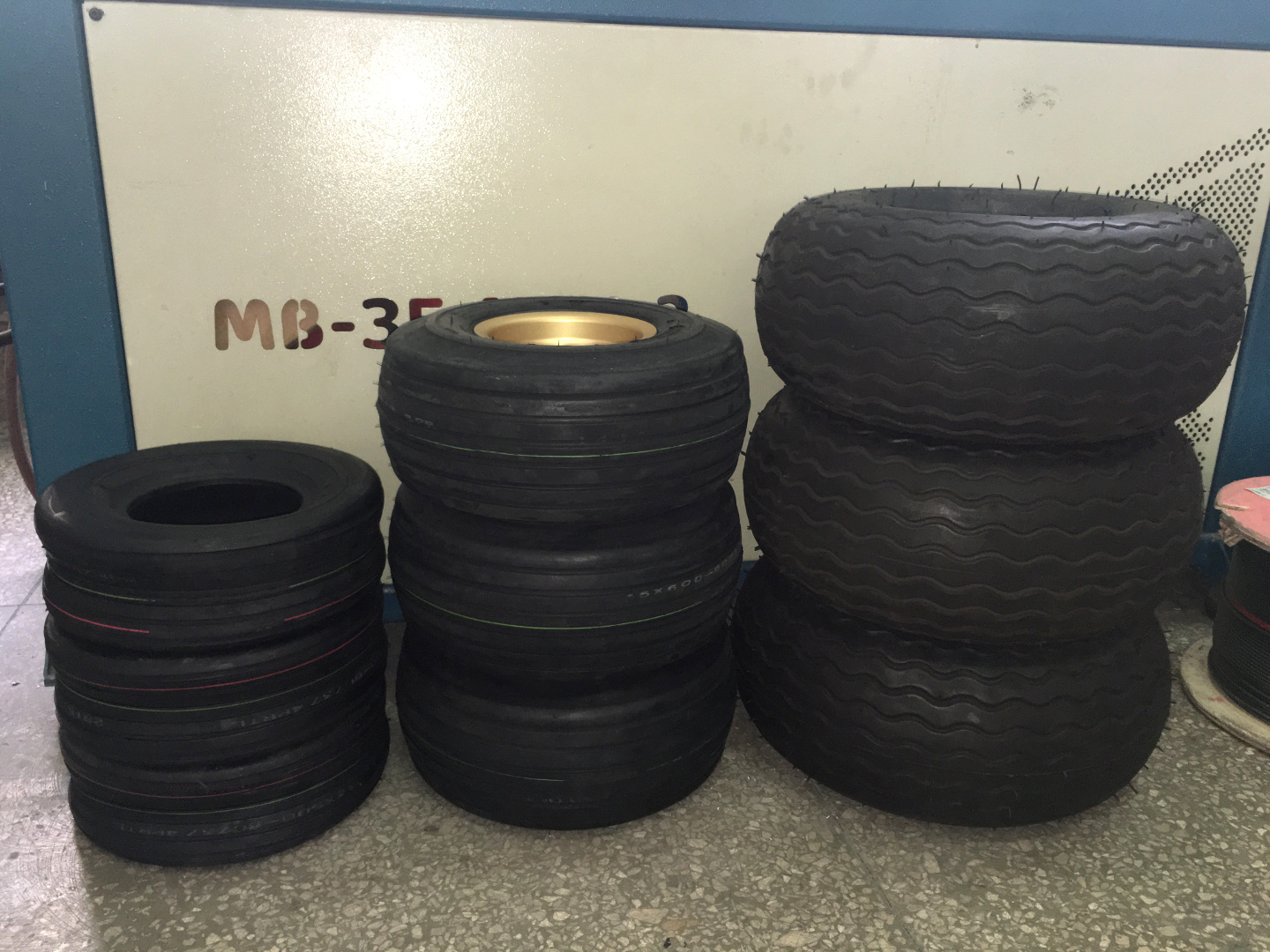

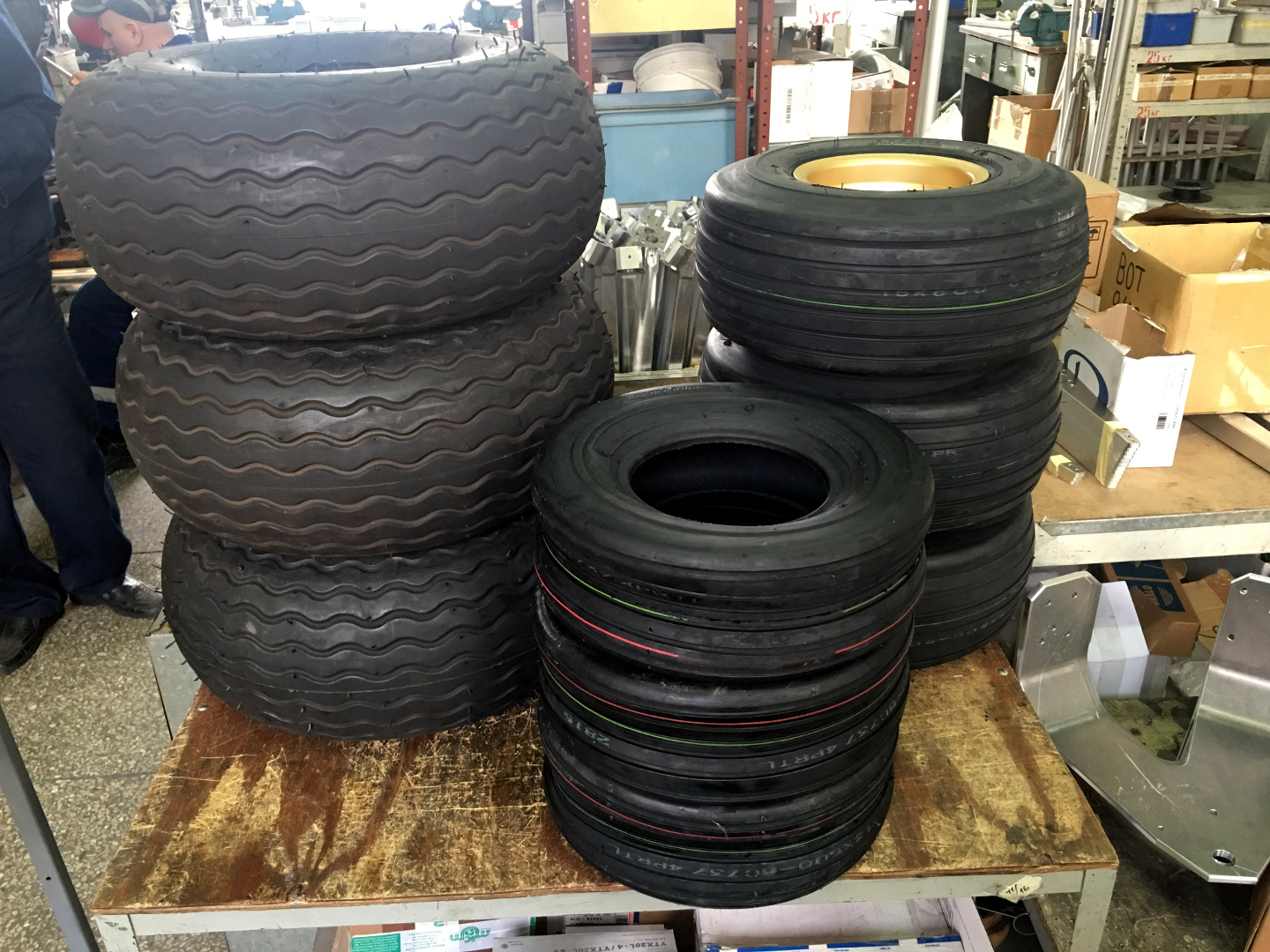

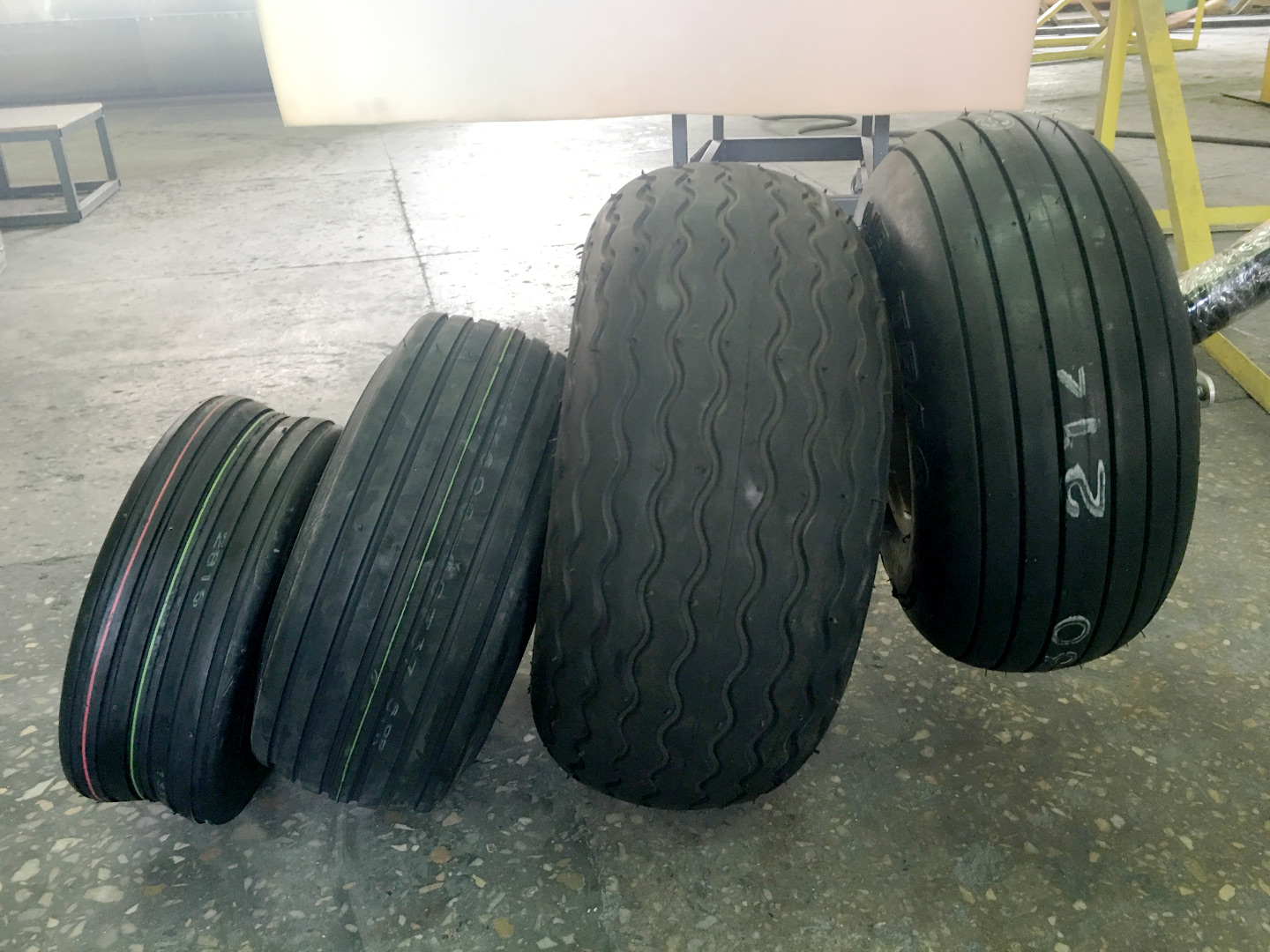

all sizes on one photo
-
all sizes on one photo
-
all sizes on one photo
-
all sizes on one photo
-

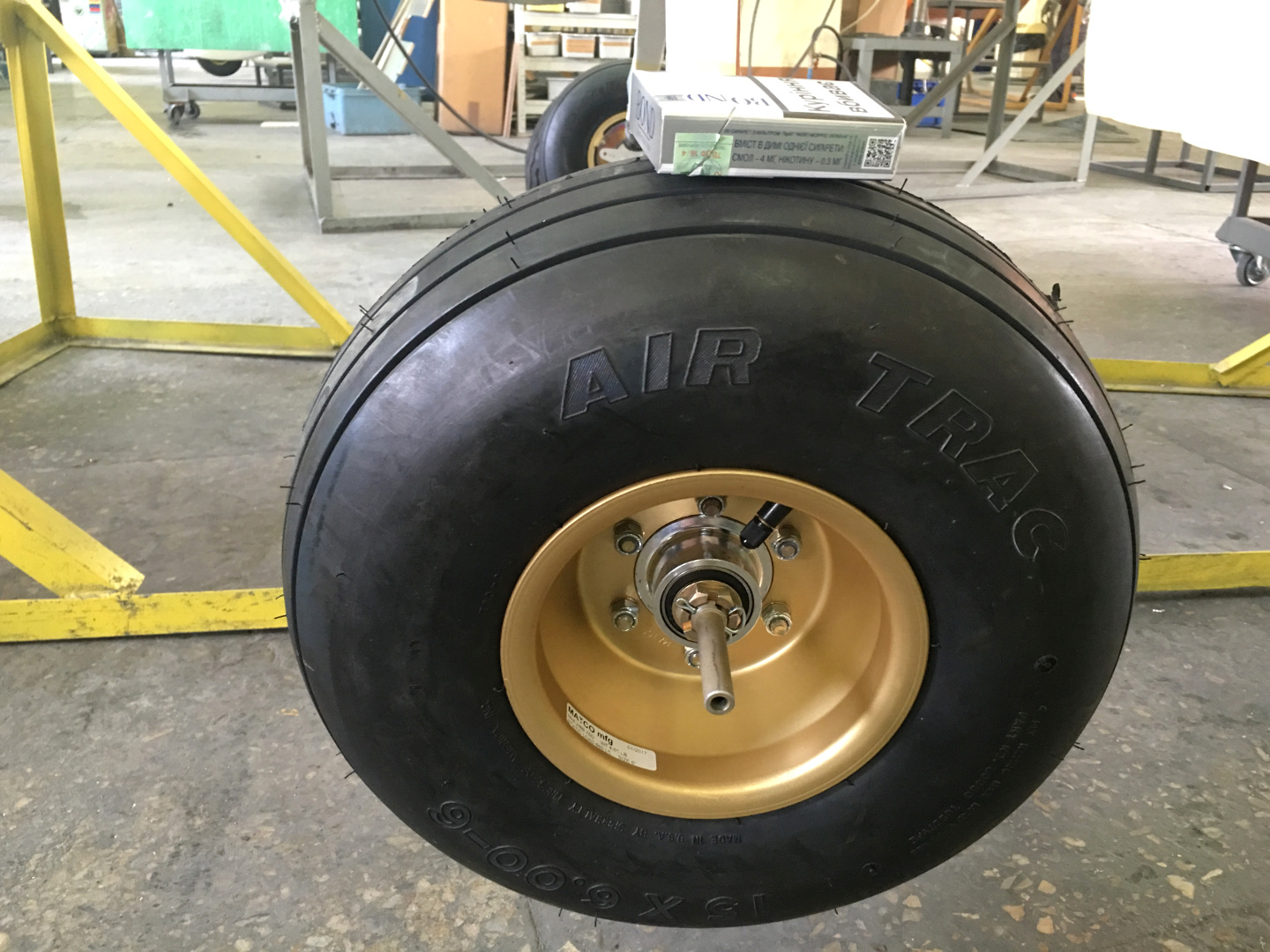

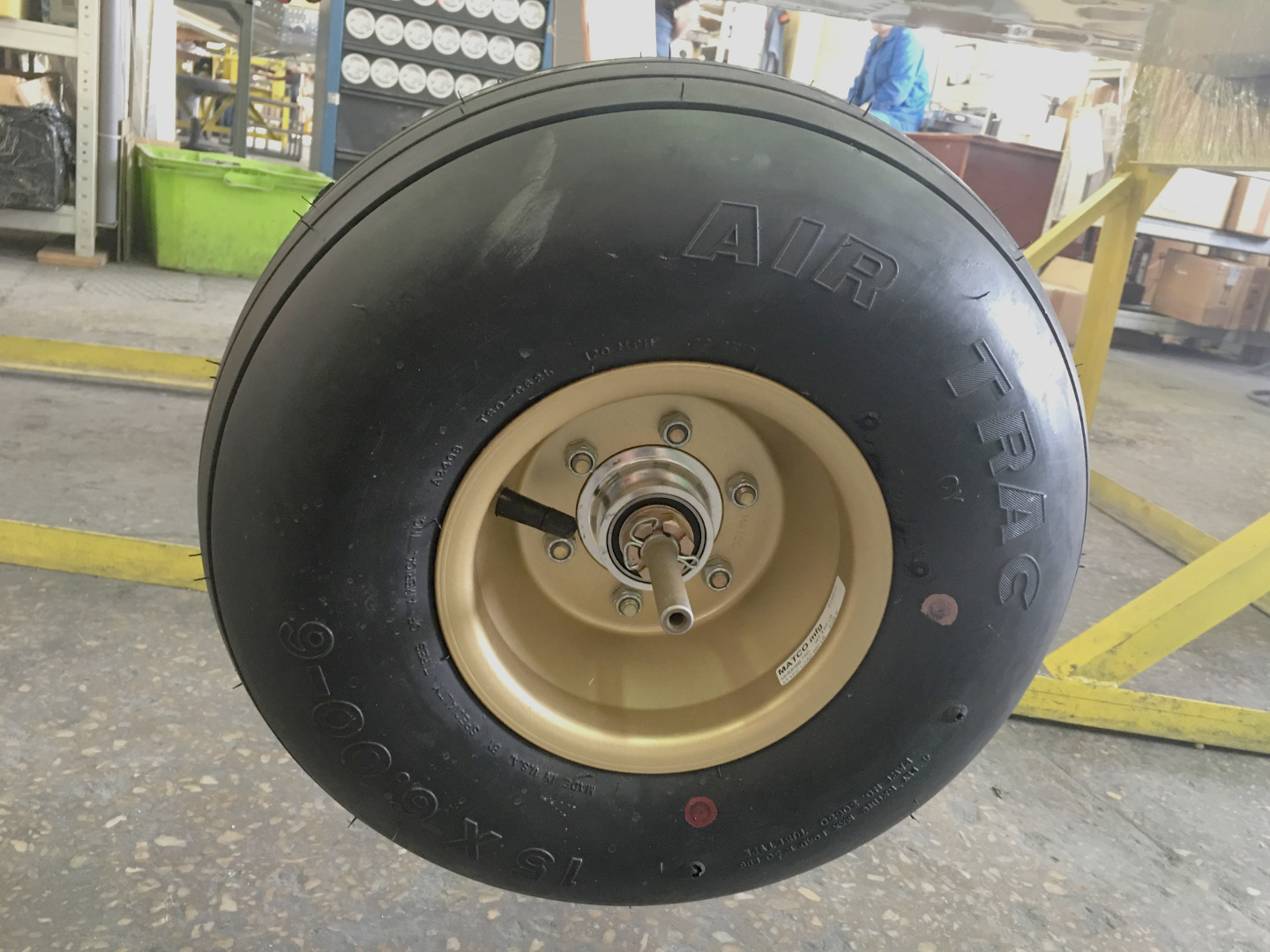

15 x 6.00-6 AirTrac
-
15 x 6.00-6 AirTrac
-
15 x 6.00-6 Cheng Shin
-

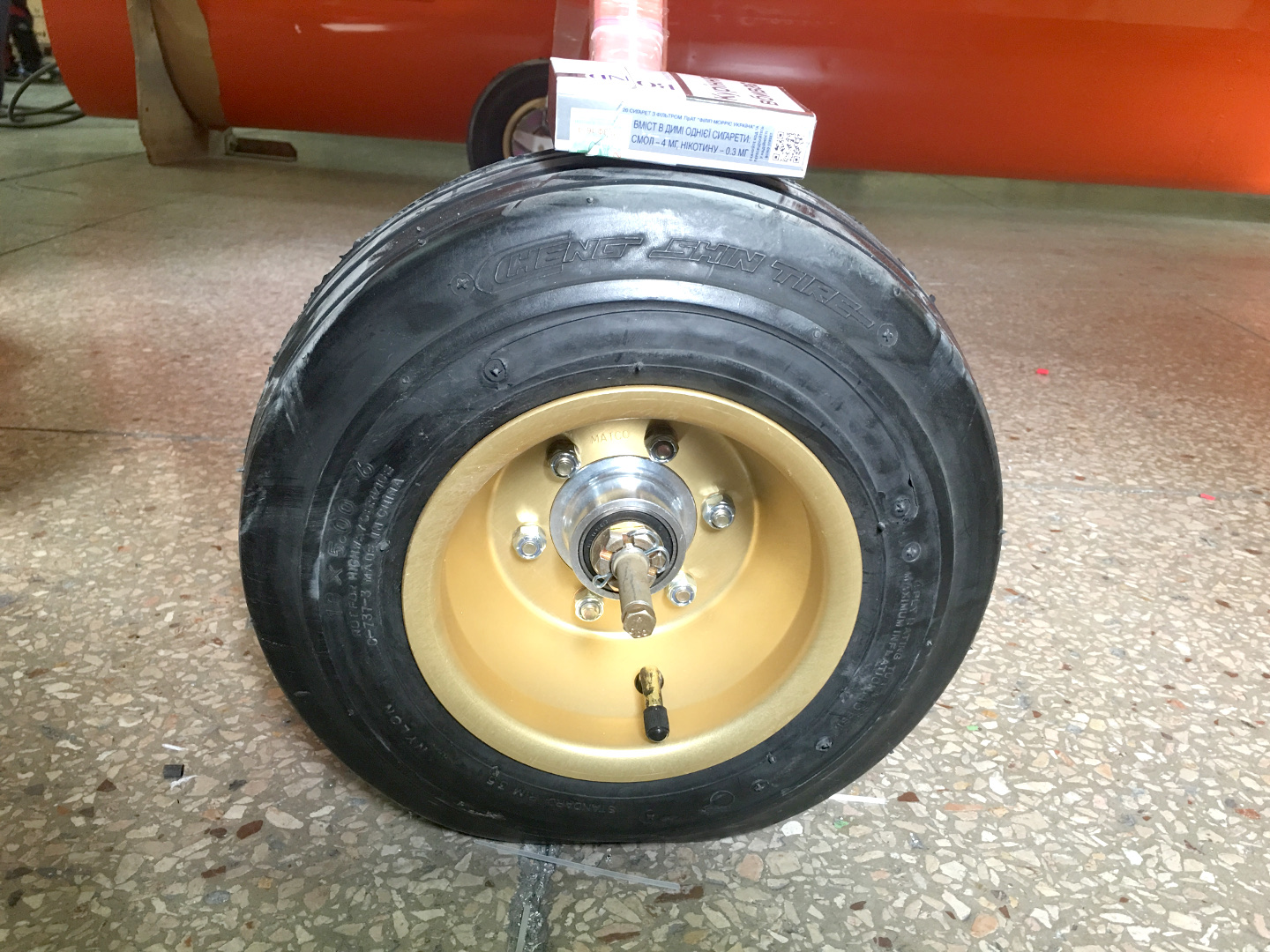

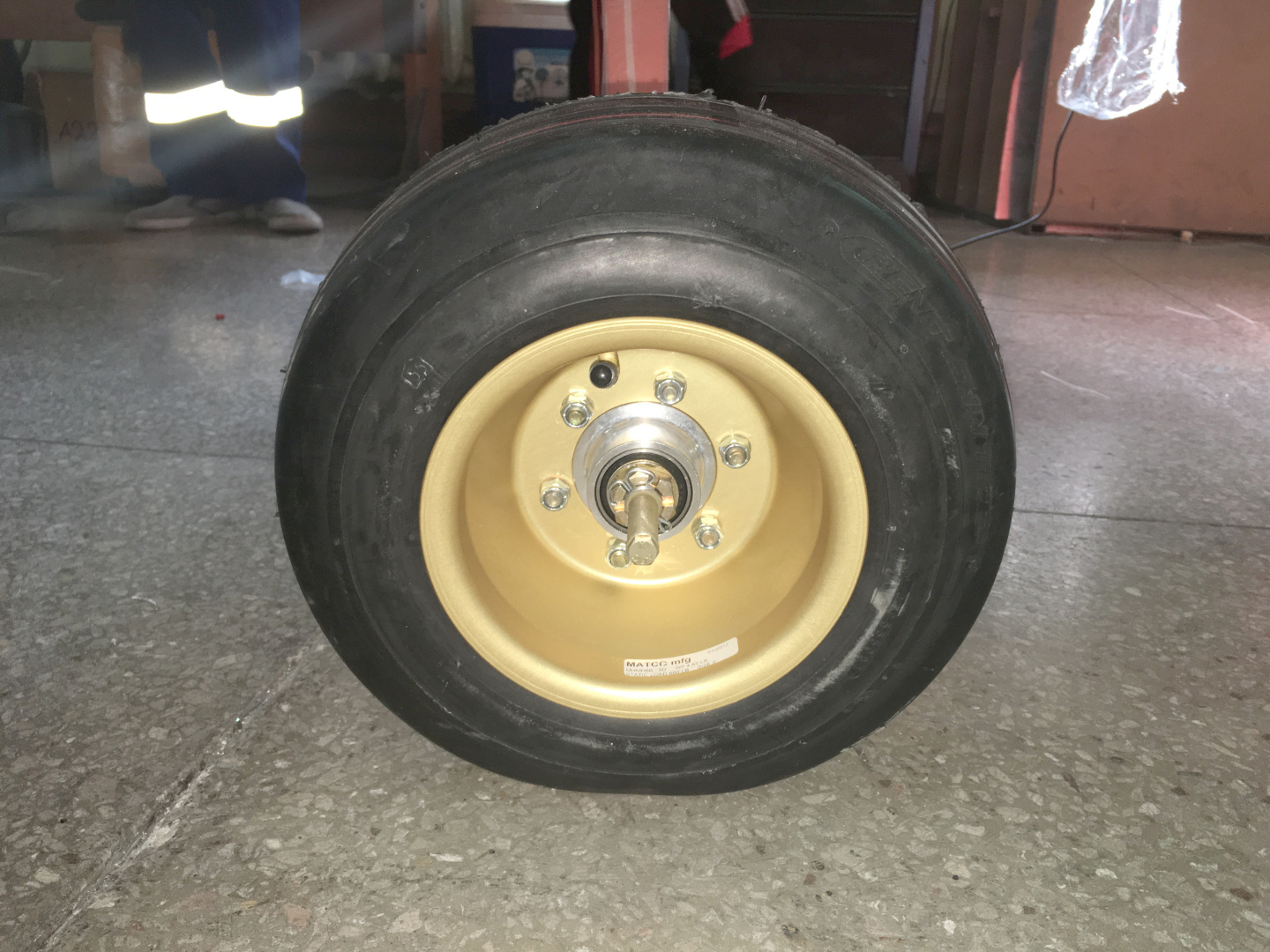

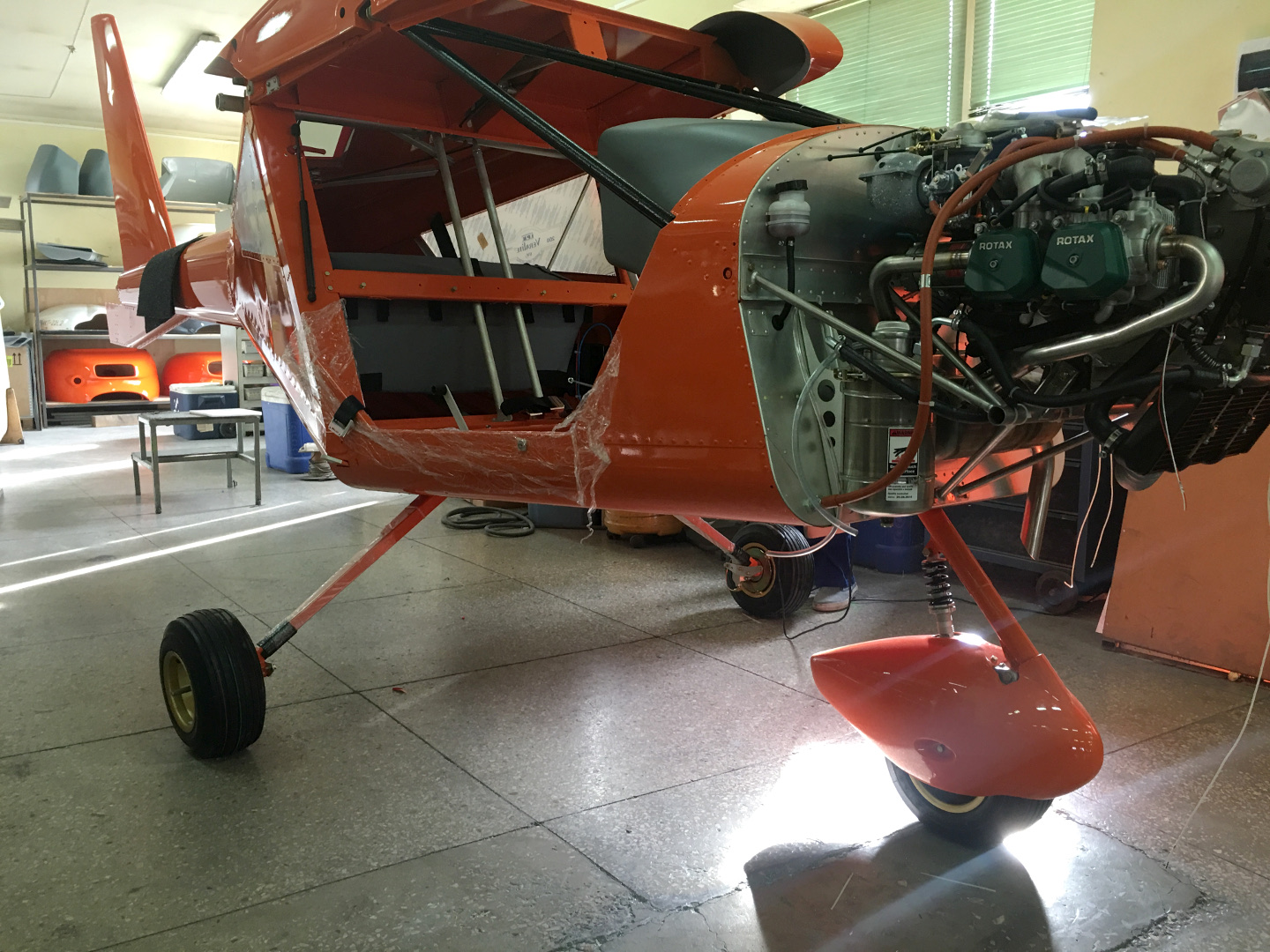

13 x 5.00-6 Cheng Shin
-
13 x 5.00-6 Cheng Shin
-

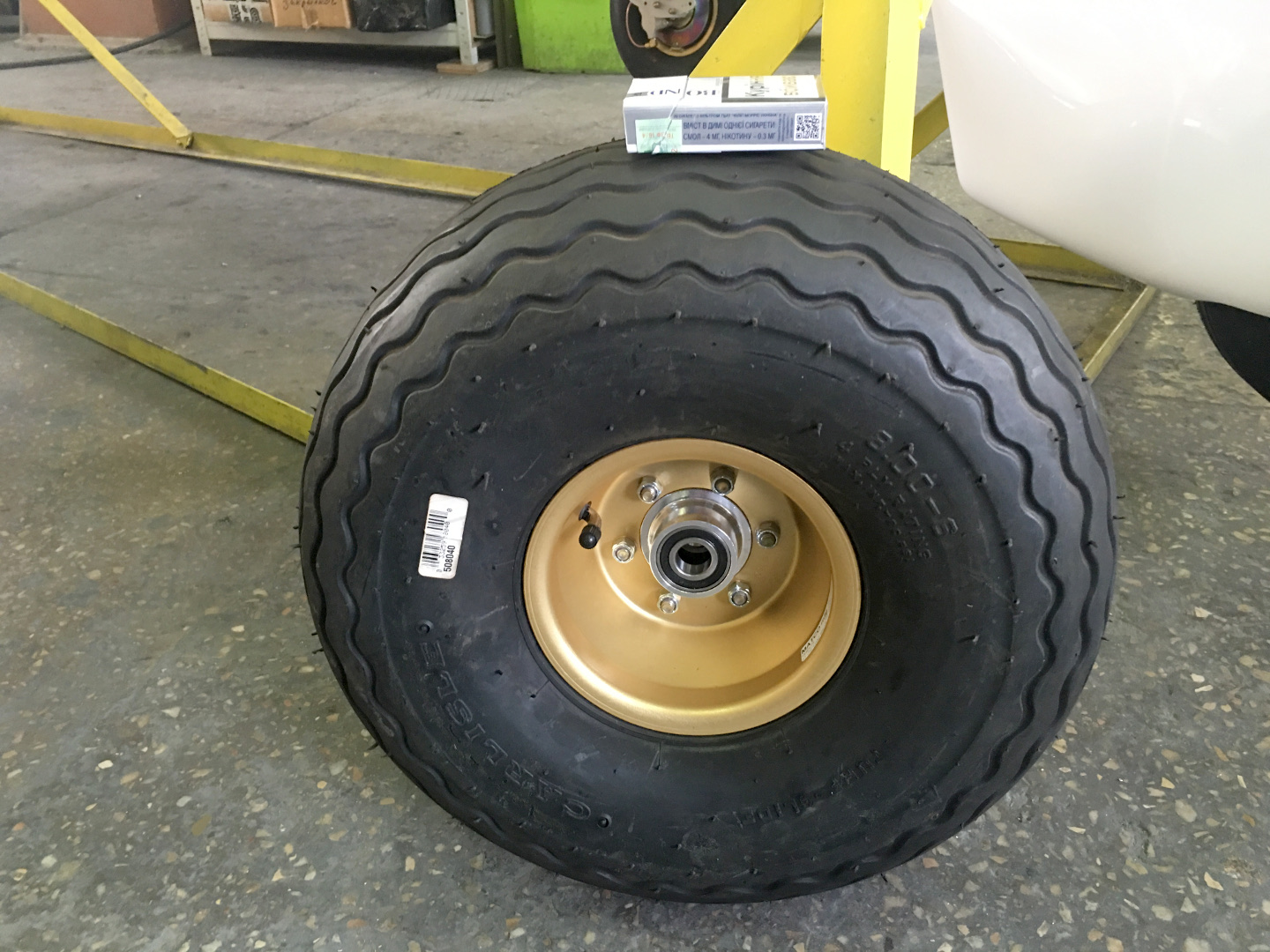

21 x 8.00-6 Carlisle
-
13 x 5.00-6 Cheng Shin
-

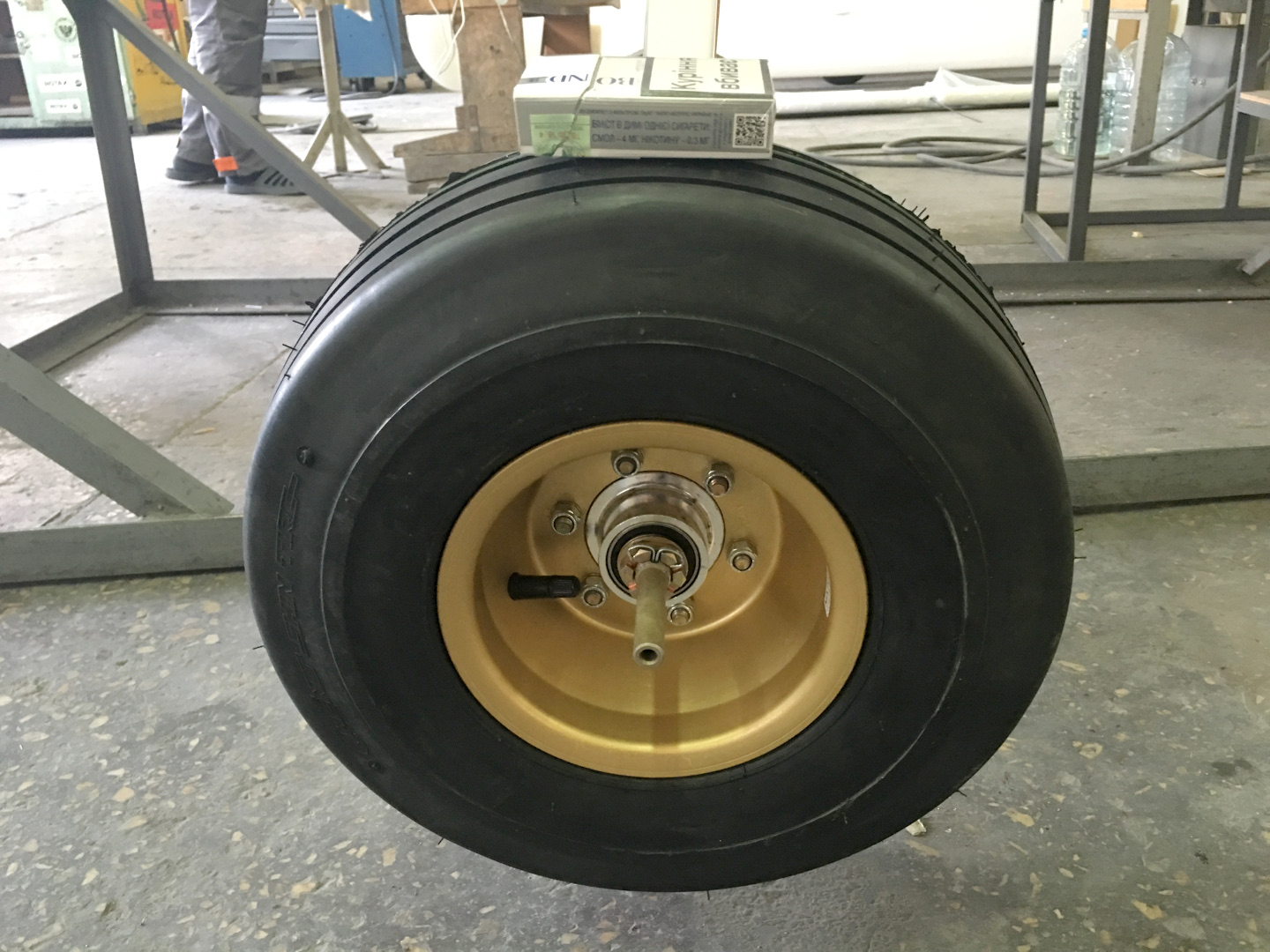

15 x 6.00-6 Cheng Shin
Steering: |
||
Type | Weight difference | Remarks |
Standard | ||
Middle stick - straight | Throttle between seats and doors. Brake lever on stick | |
Options | ||
Stick Y-shaped | + 0,2 kg | Enables dual control. Two throttle levers between seats and doors. Brake lever on stick |
Option: Yokes | + 3,8 kg | Dual control. Throttle in the middle between seats. Brake lever combined together with throttle lever |

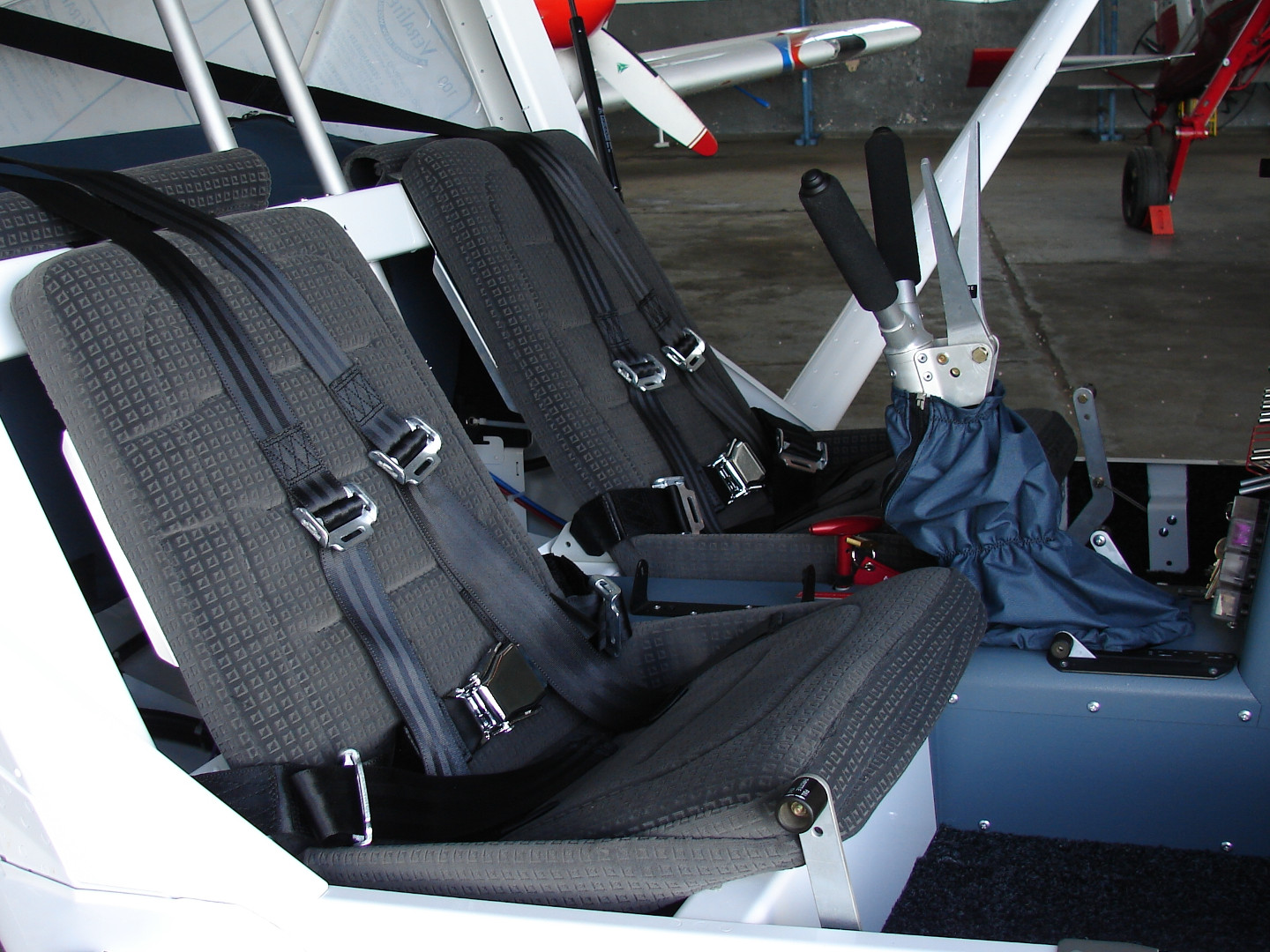

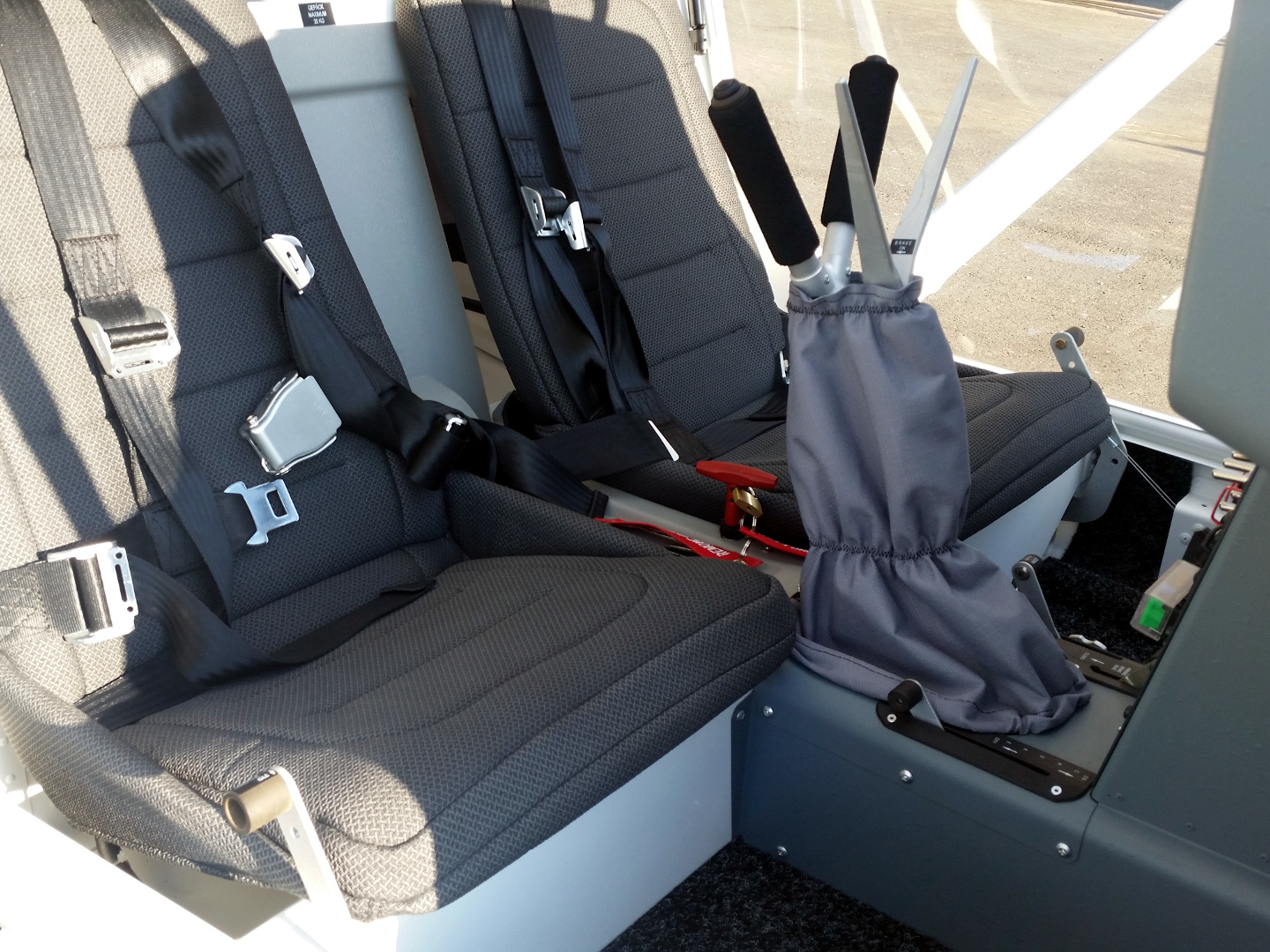

Central stick Y

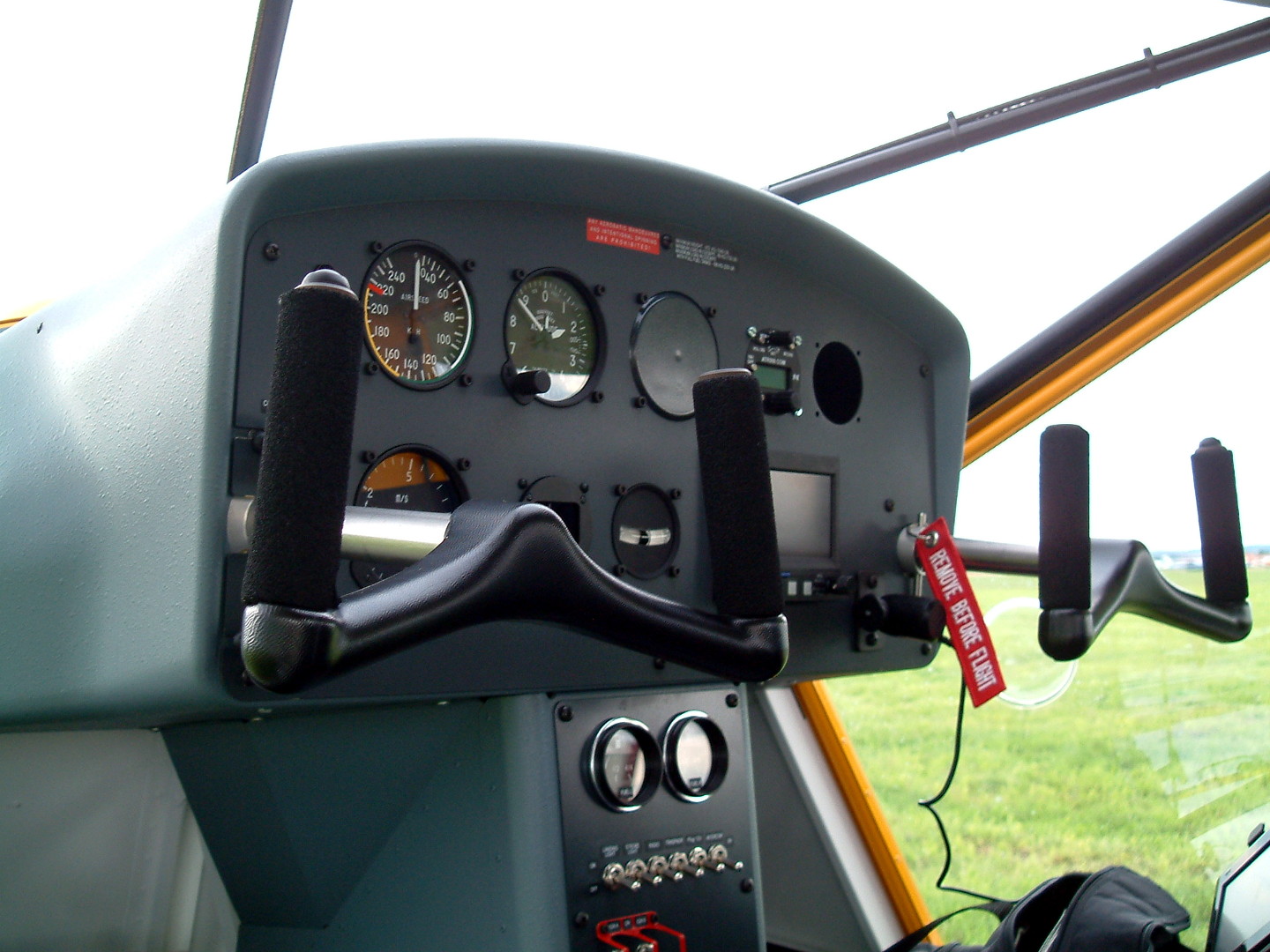

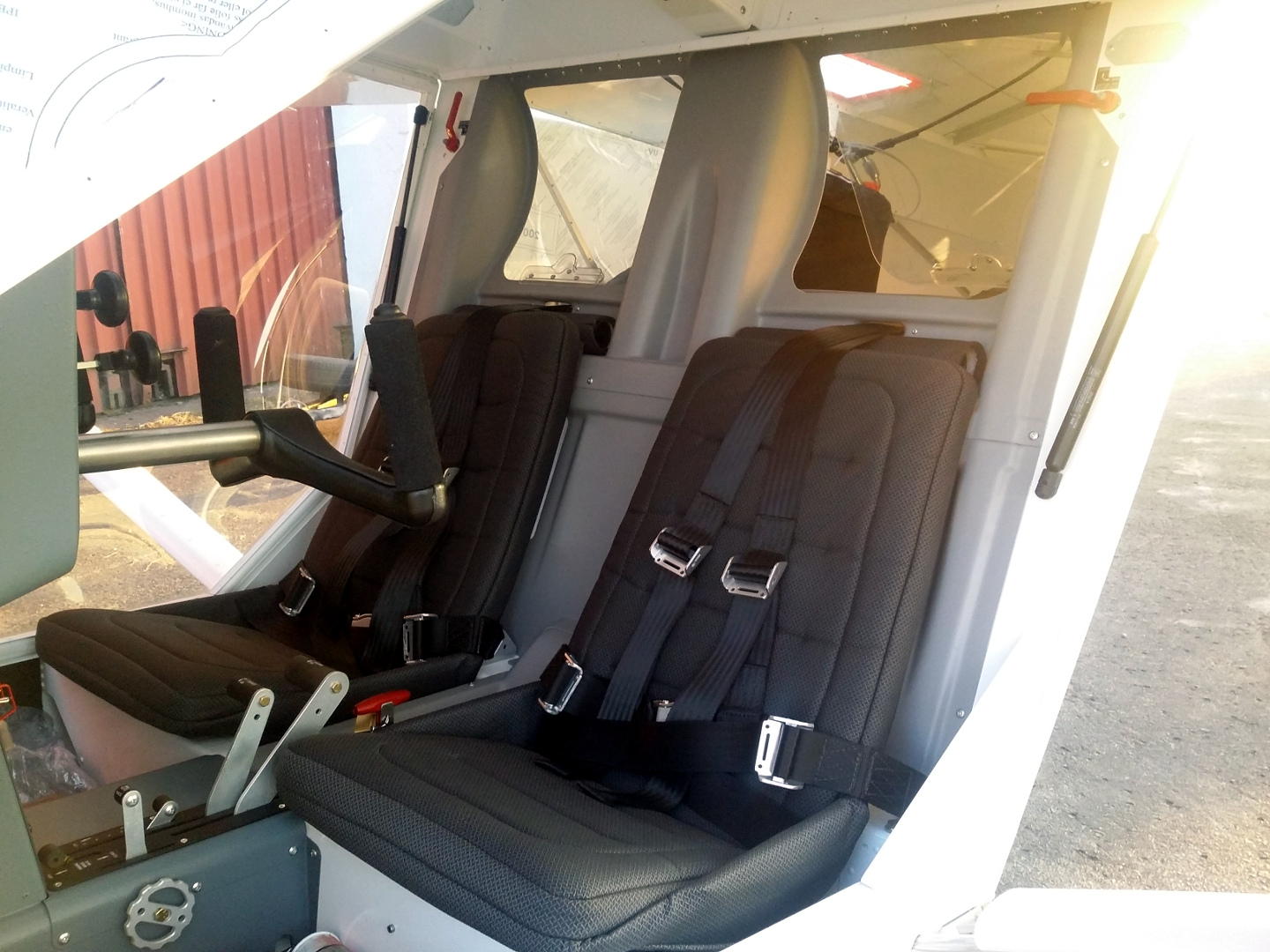

Yoke
Yoke
Central stick Y
-
Enables dual control. Two throttle levers visible between seats and doors. Brake lever on stick
-
Enables dual control.. Throttle lever in the middle between the seats. Brake lever combined together with throttle lever.
Additional option visible here: warmth keeping partition behind the seats
-
Enables dual control.. Throttle lever in the middle between the seats. Brake lever combined together with throttle lever
-
Enables dual control. Two throttle levers between seats and doors. Brake lever on stick

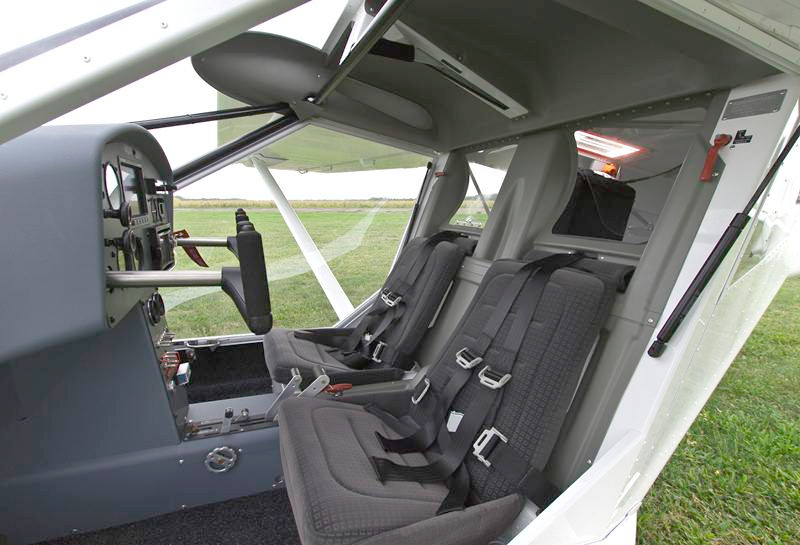

Plastic ceiling panel: |
|
Type | Weight difference |
Standard | |
no panel | |
Option | |
Plastic panel | + 1,6 kg |

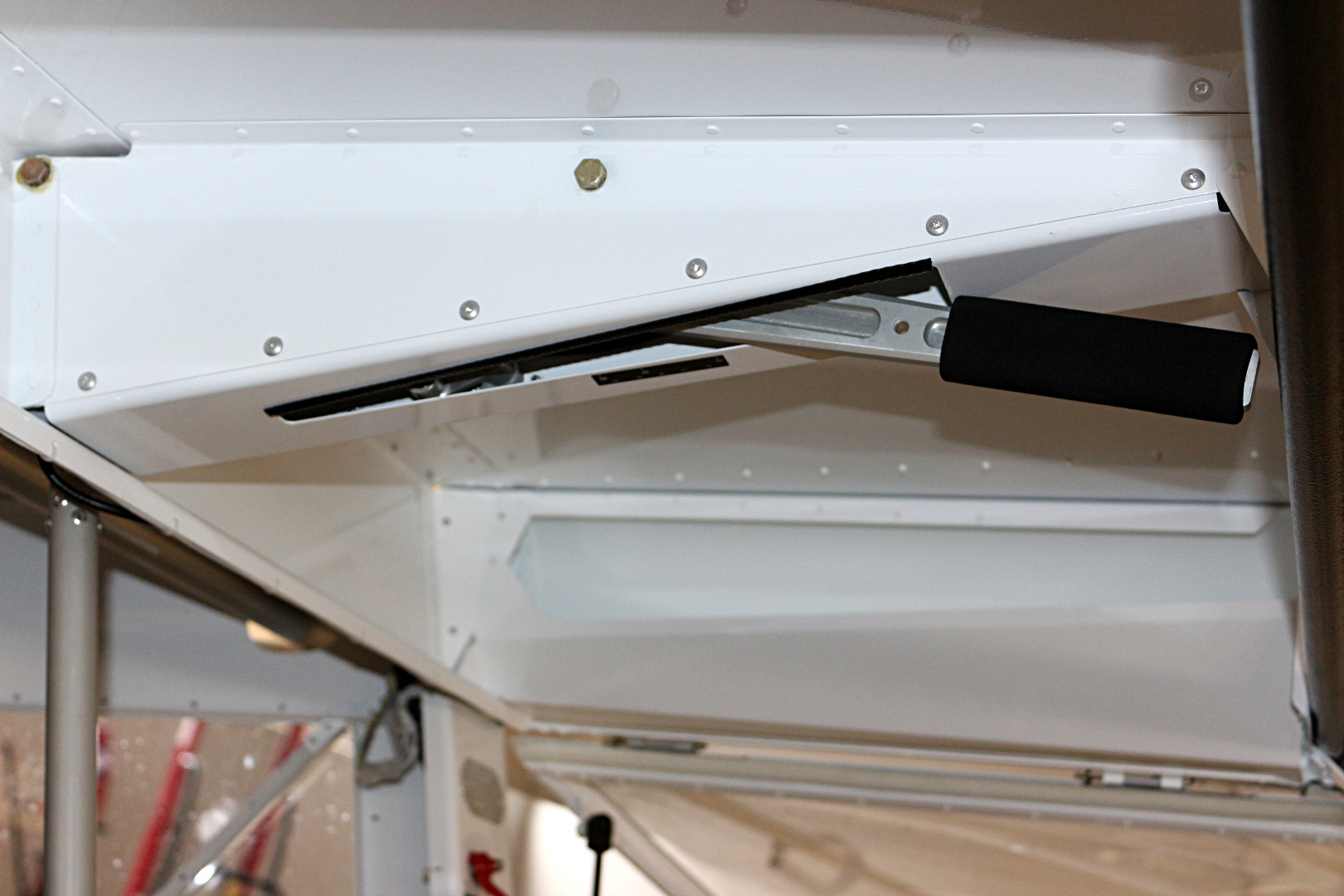

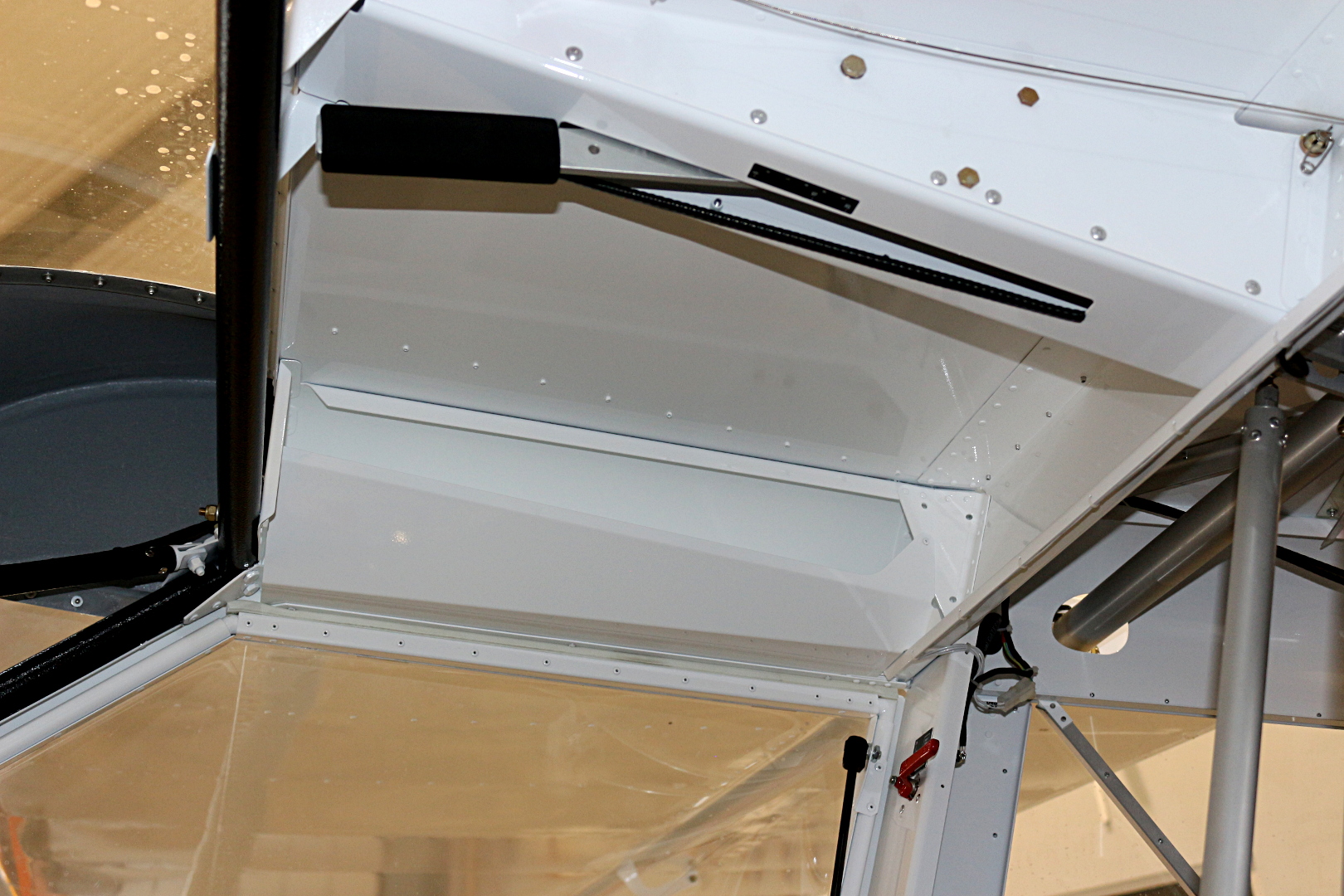

Standard
Standard

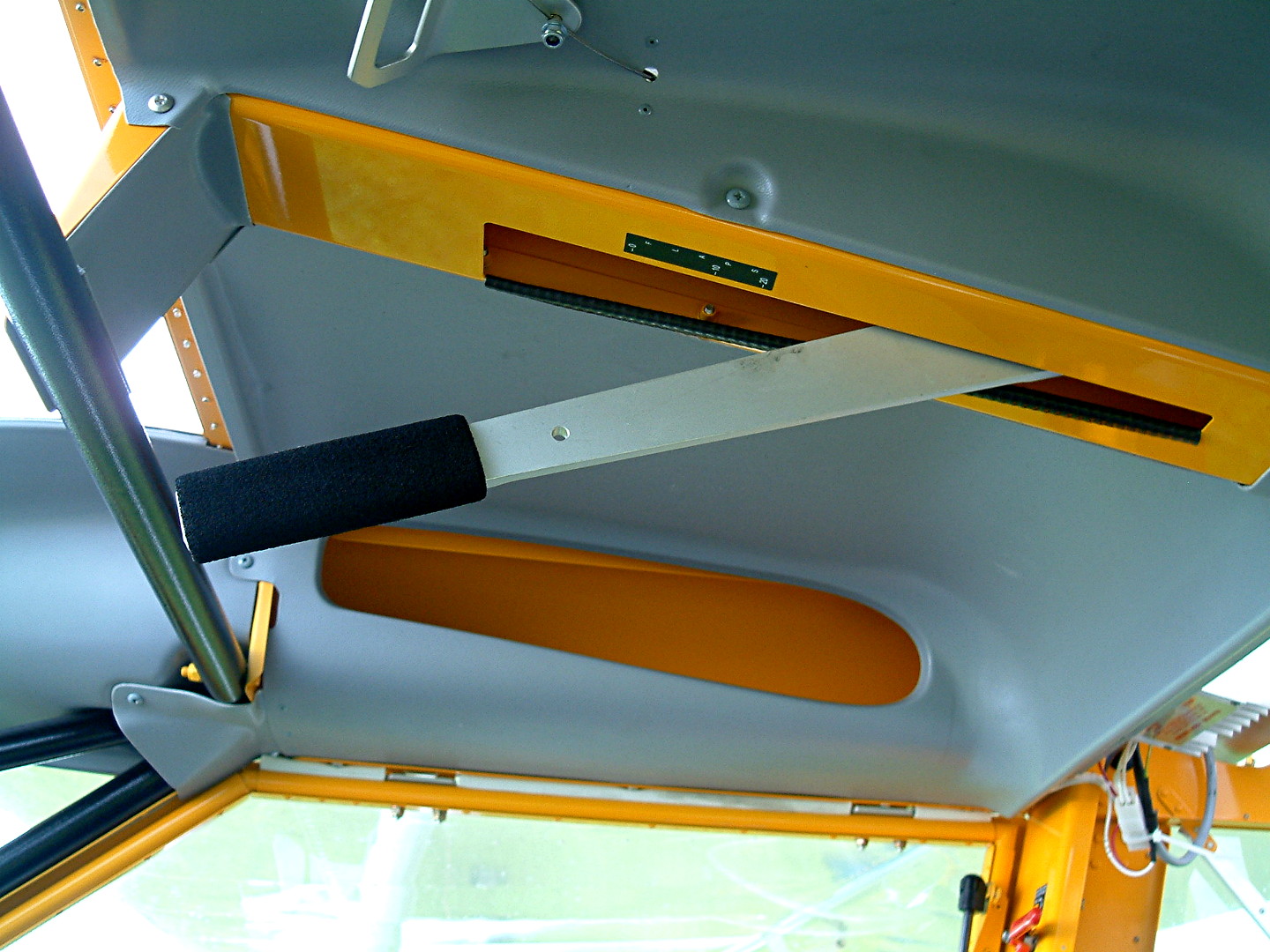

Optional panel
Optional panel
-
-
-
the warmth keeping partition behind the seats also visible in the picture.
-
Warmth keeping partition: particularly recommended for aircraft operated in low temperatures (e.g. winter, late autumn). It reduces the volumen of air in cockpit and strongly improve the heat comfort in flight. The partition can easily be removed for summer time. |
||
Type | Weight difference | Remarks |
Standard | ||
no partition | ||
Options | ||
plastic partition with windows | + 2,2 kg | The two windows privide easy access to luggage container. |

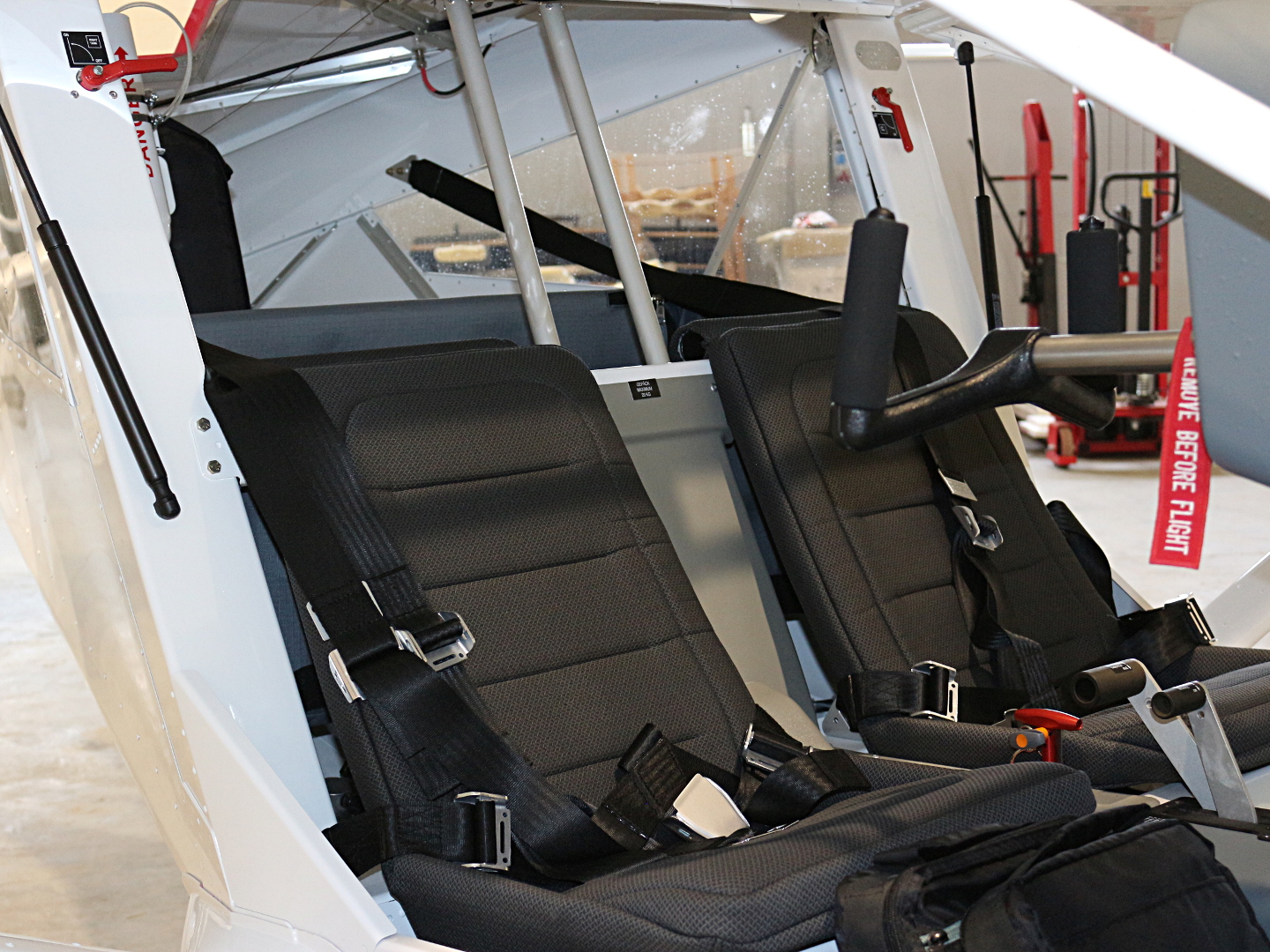

Standard
Standard

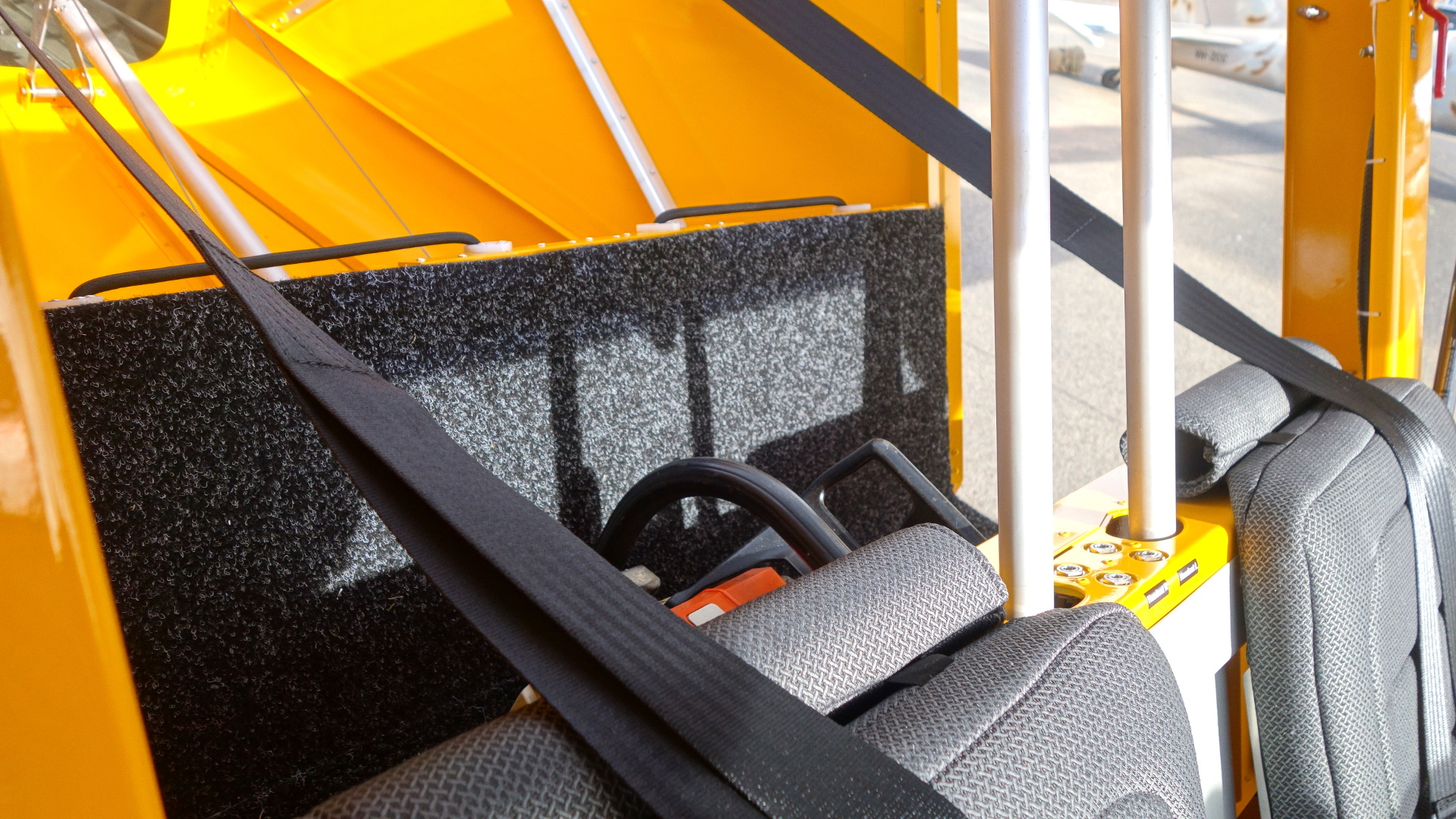

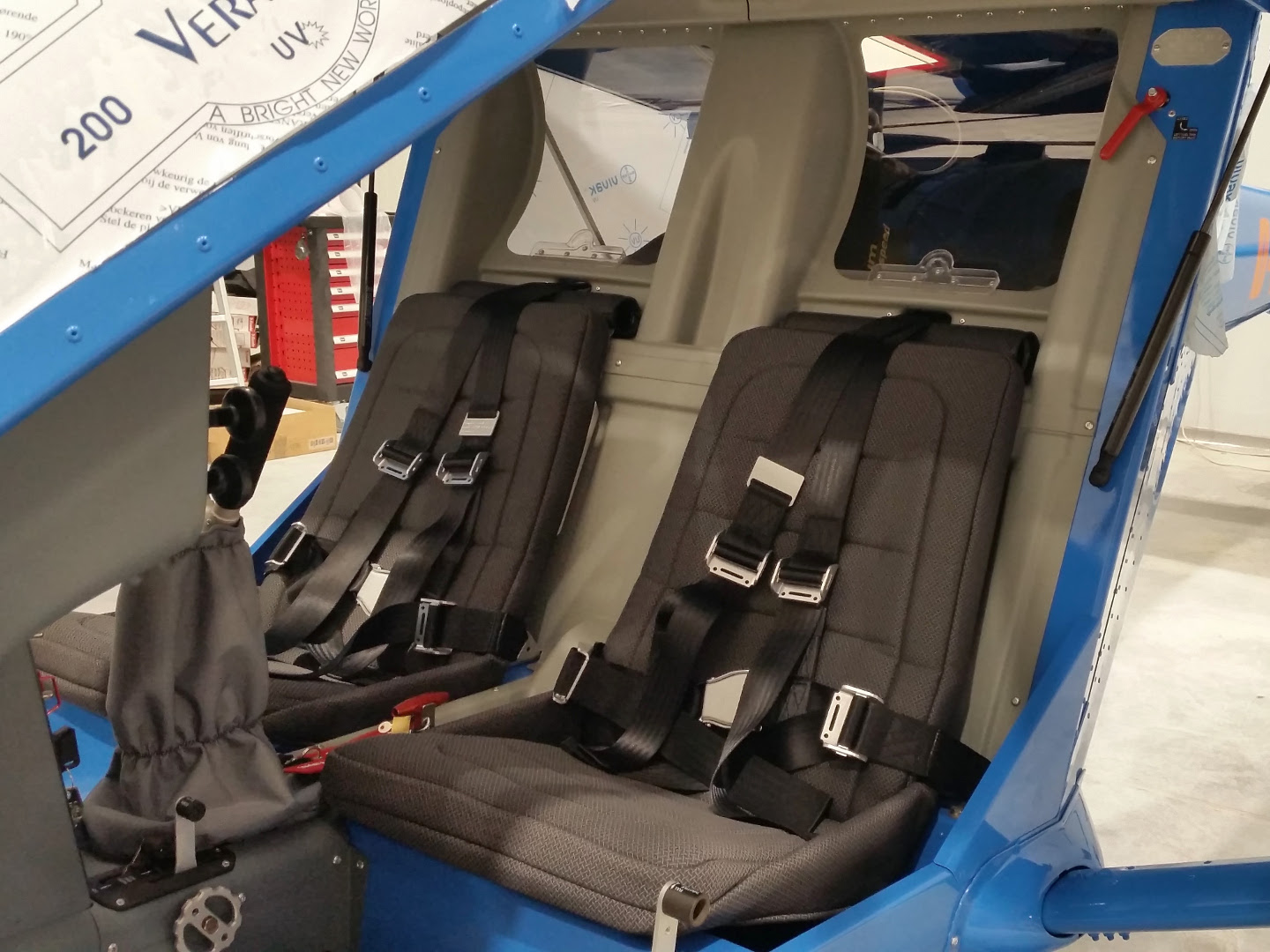

Optional partition
Optional partition
Optional partition
-

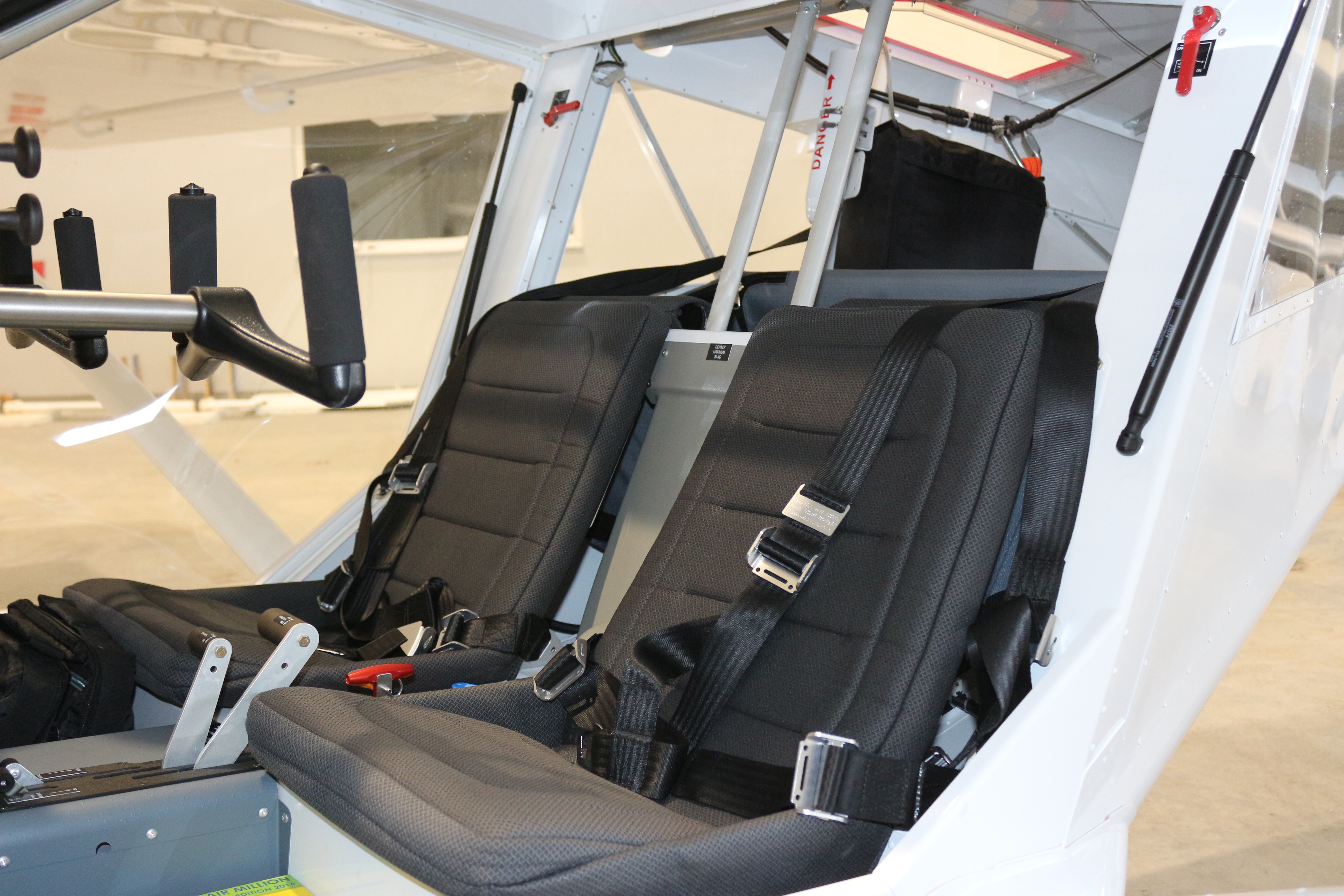

no partition, only small panel between seats to prevent small objects from falling into steering mechanisms
-
no partition, only small panel between seats to prevent small objects from falling into steering mechanisms
-
-

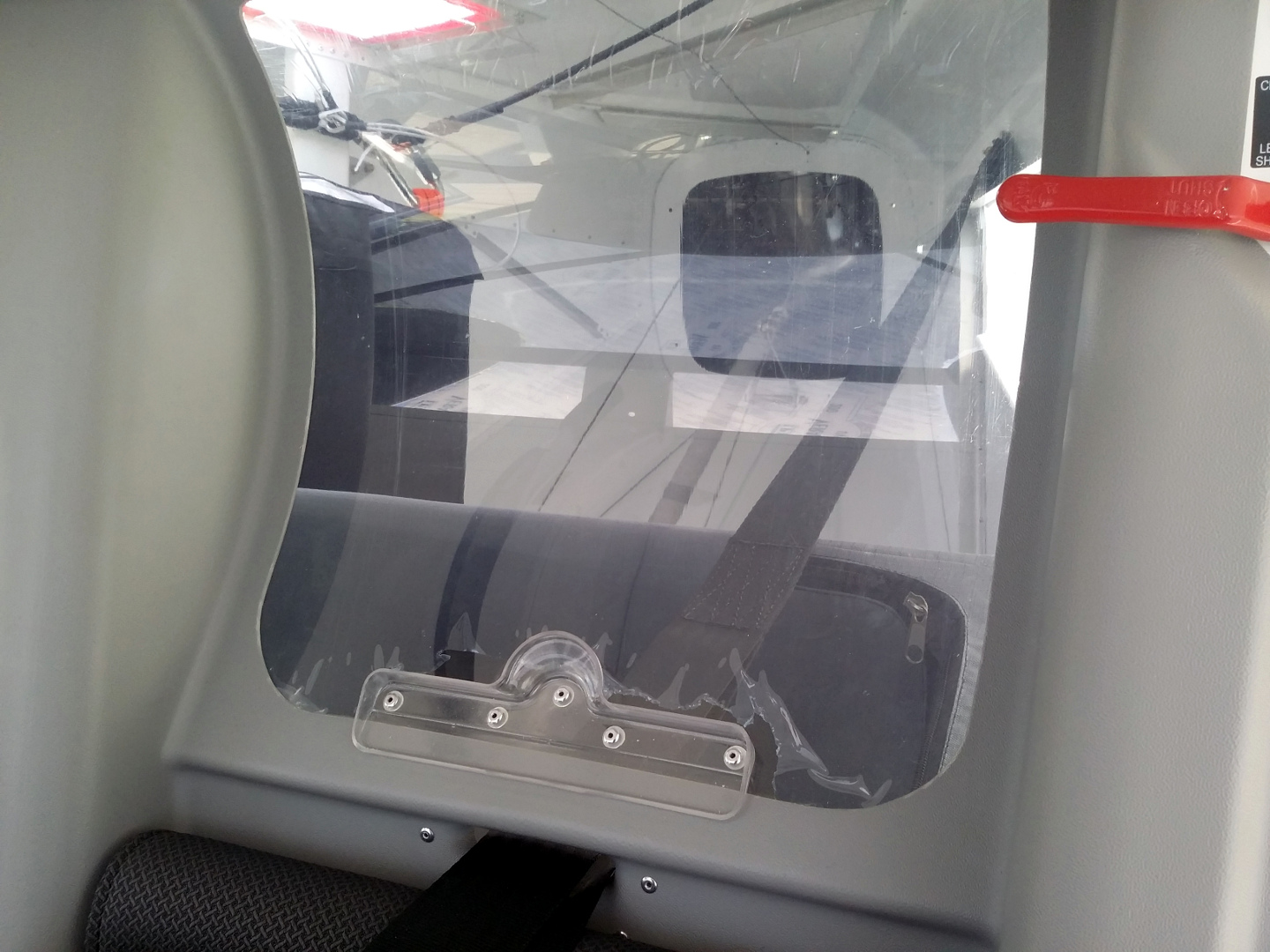

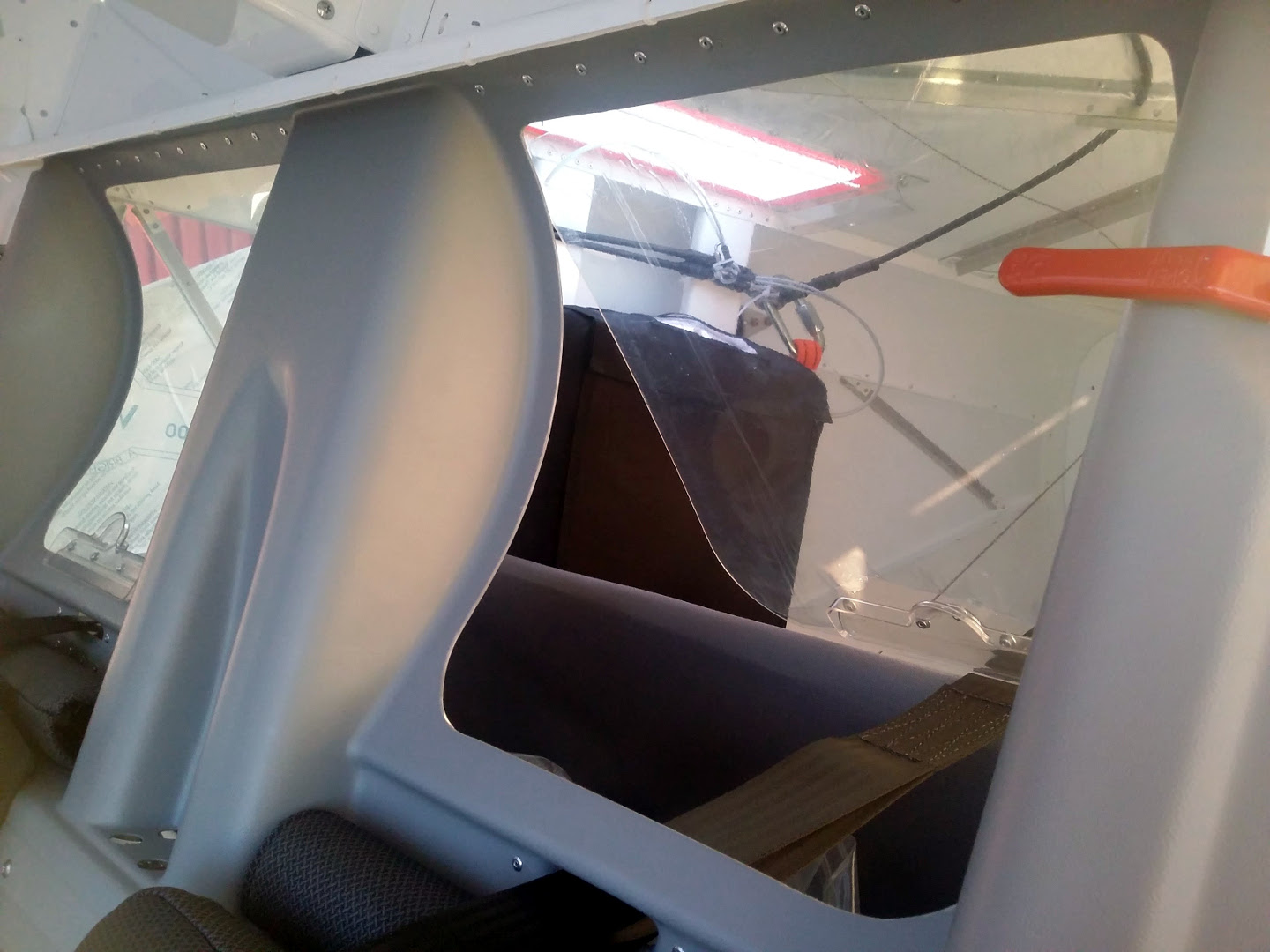

Small windows provide easy access to luggage container. See next photo
-
Small windows provide easy access to luggage container.

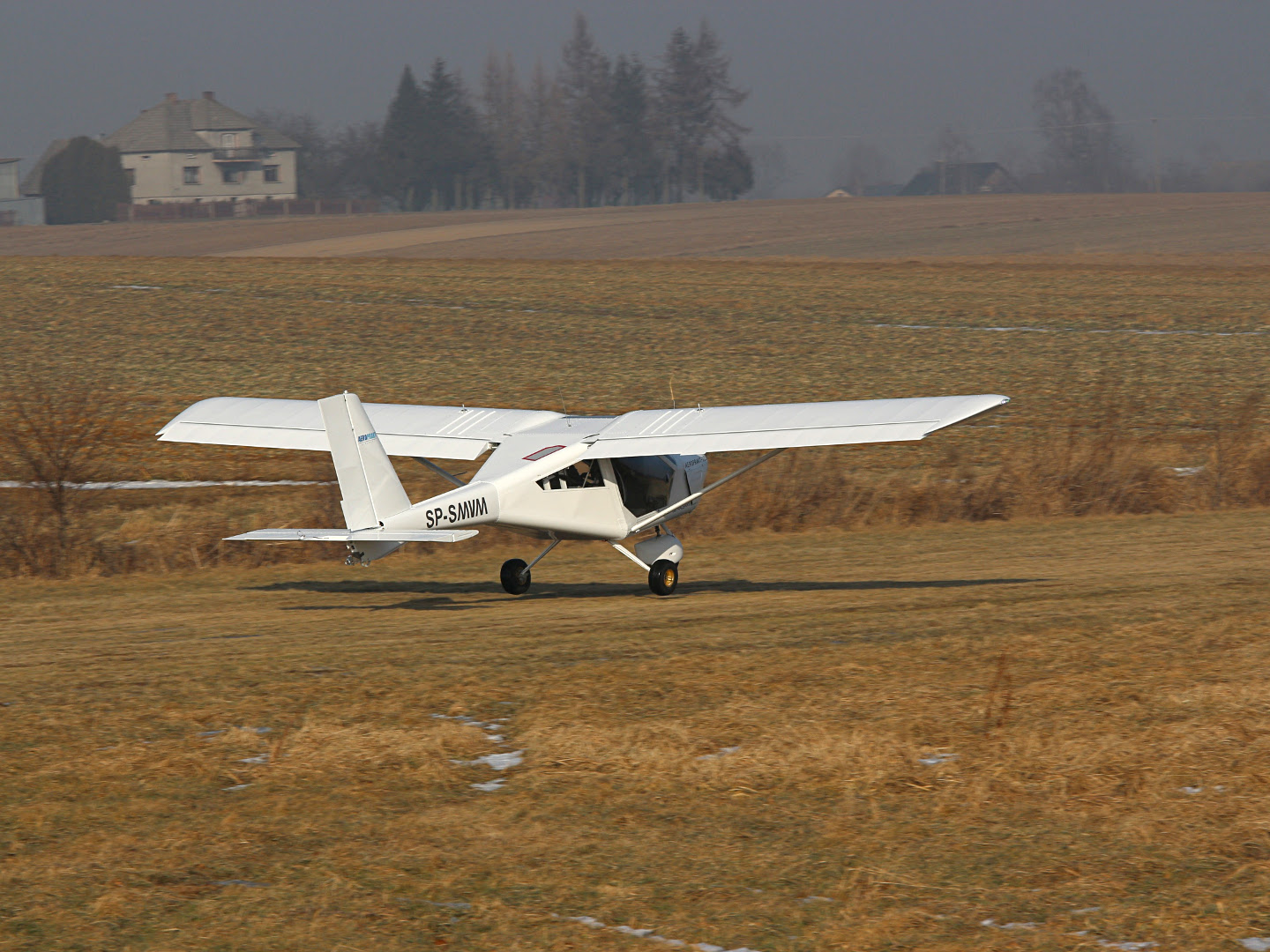

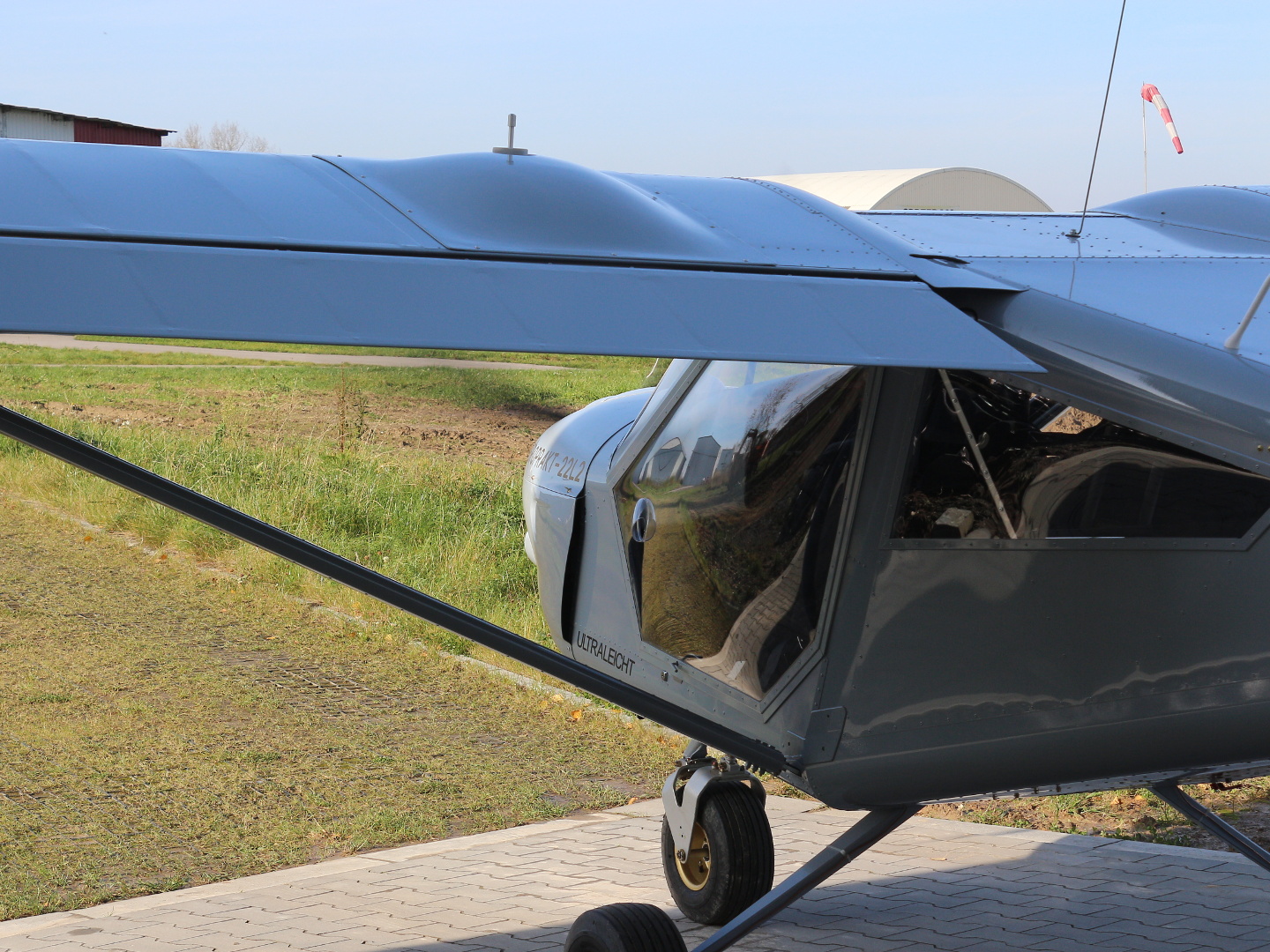

Aluminum skin in rear part of fuselage: |
||
Type | Weight difference | Remarks |
Standard | ||
glazing | ||
Options | ||
aluminum skin | none | small windows provided in upper part of skin |

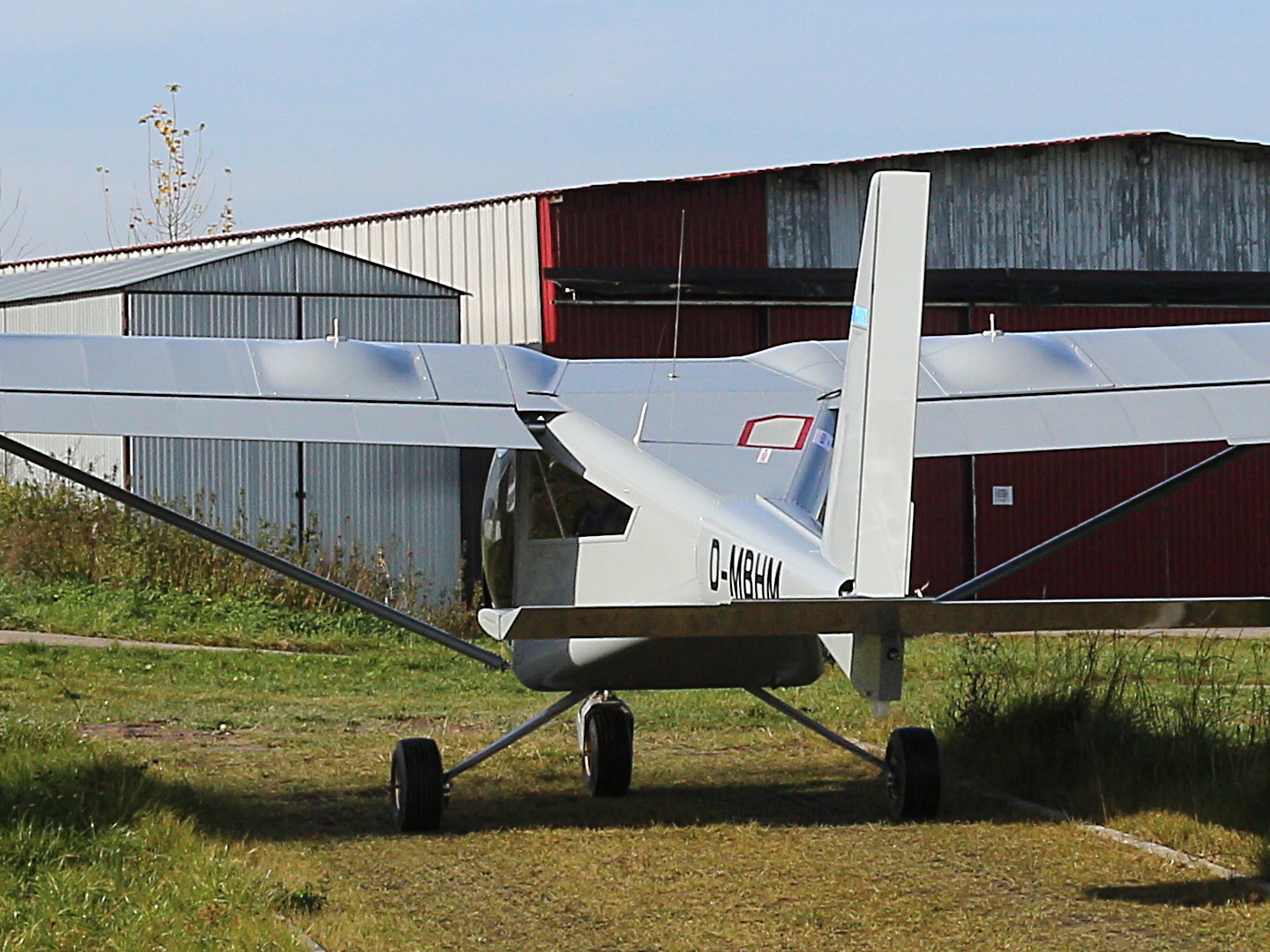

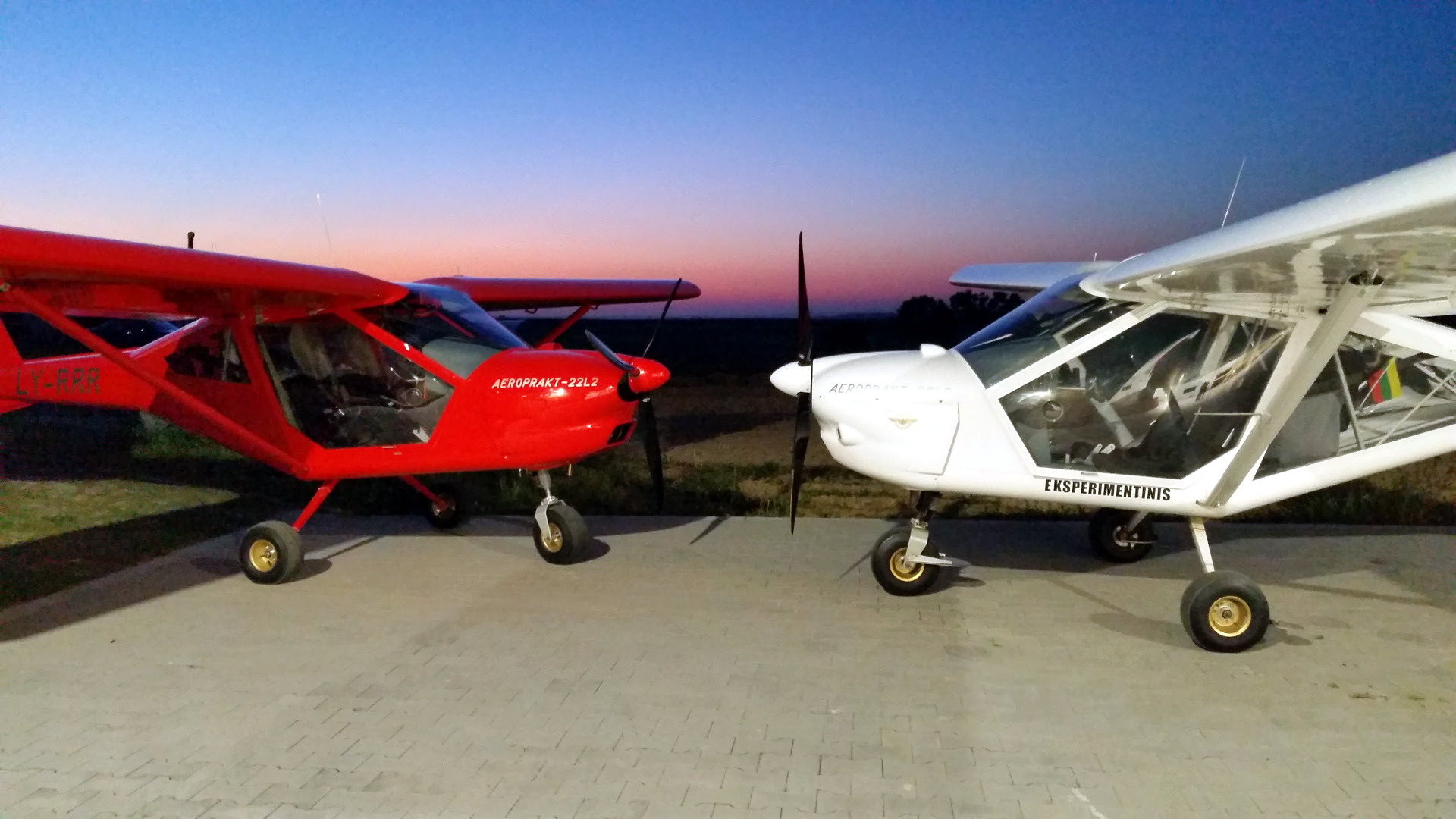

Both

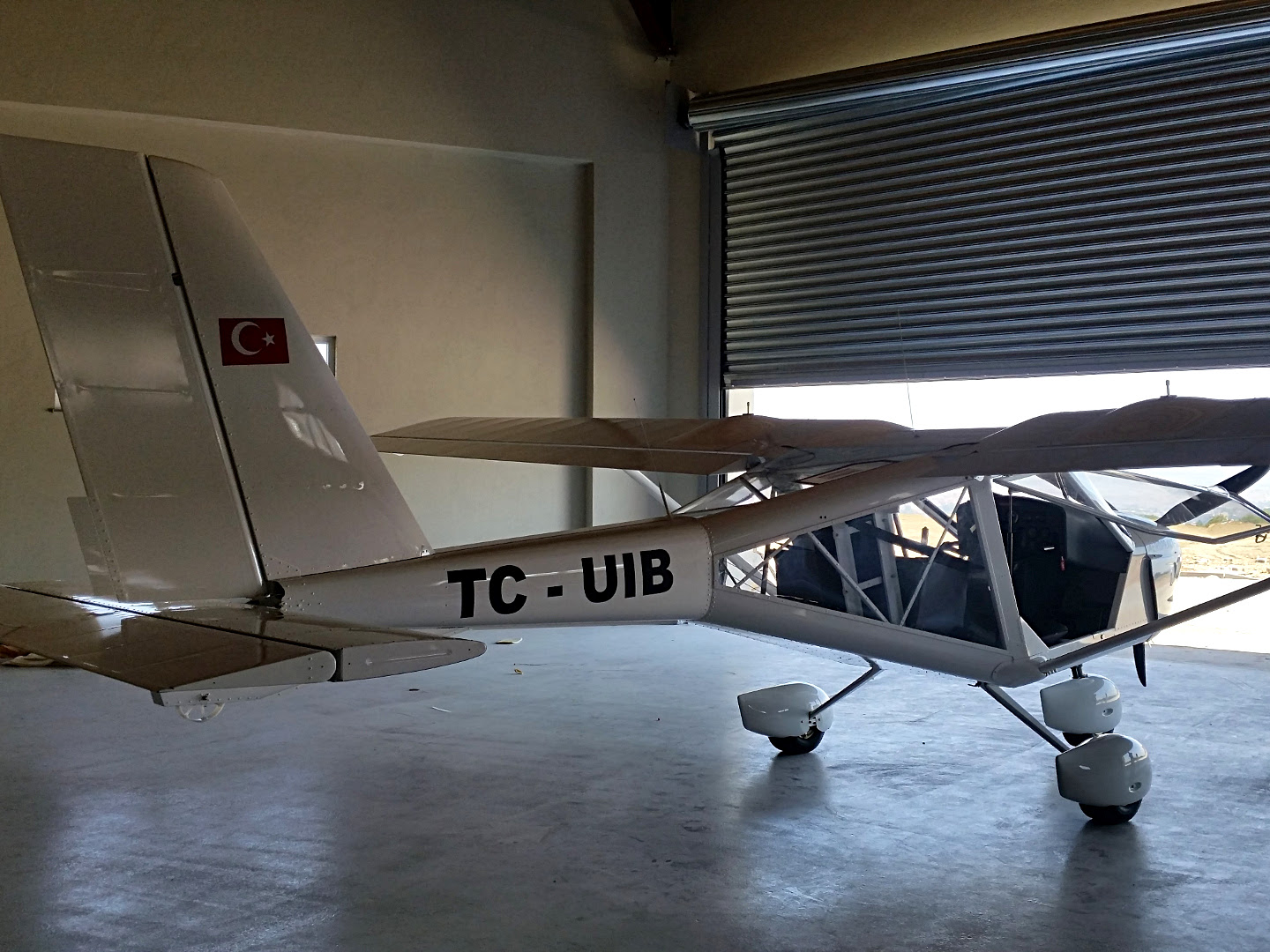

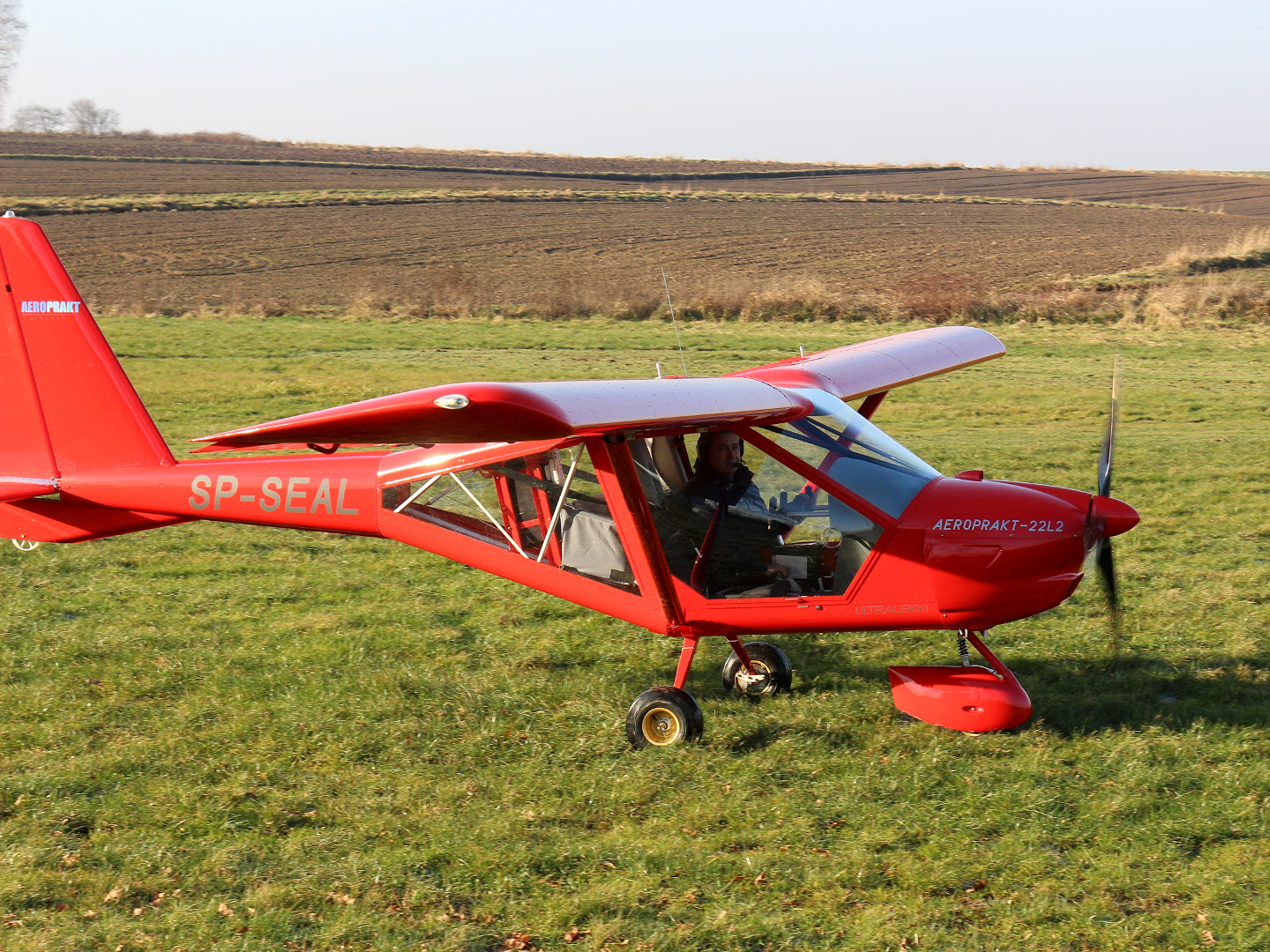

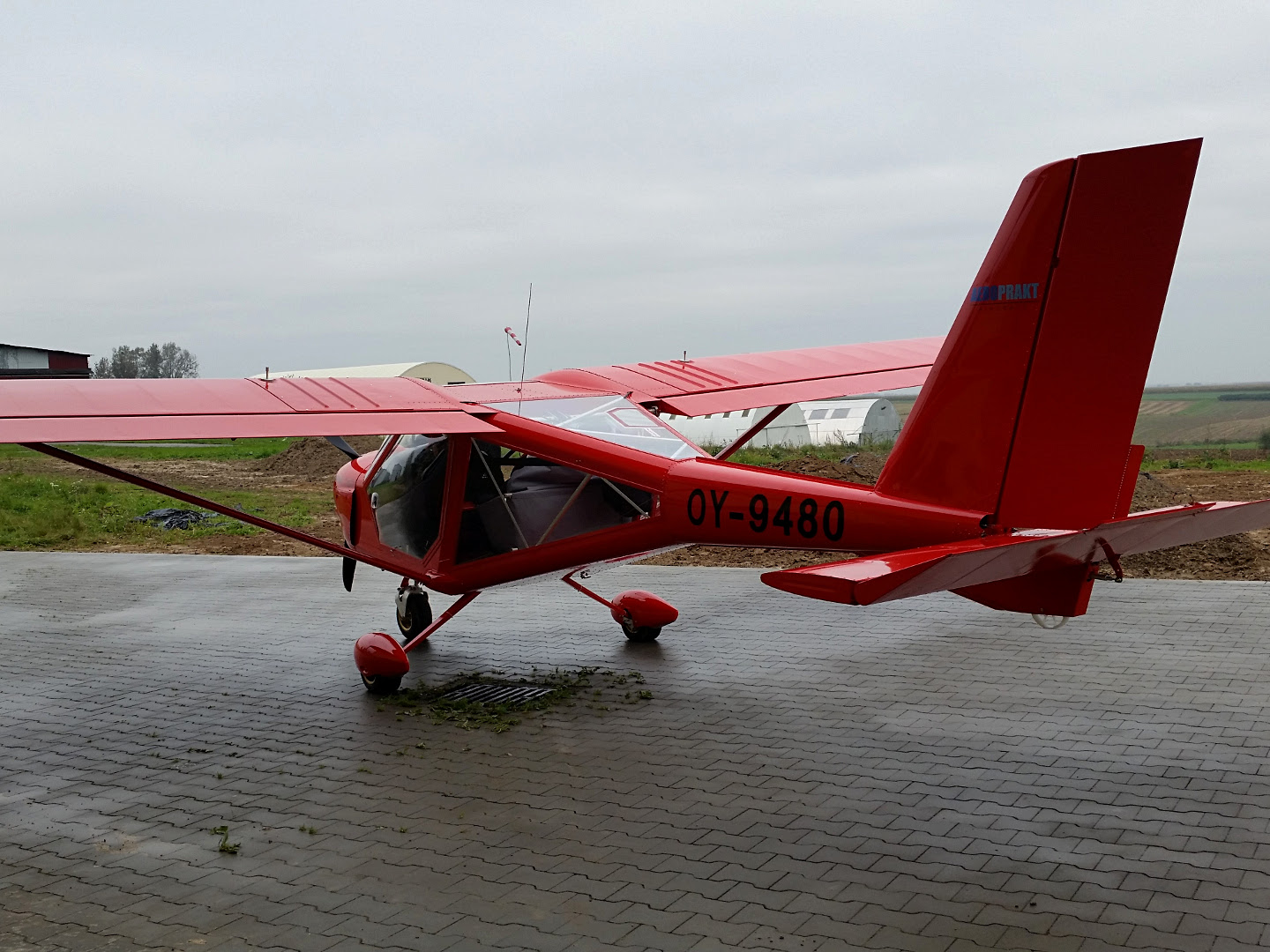

Standard glazing

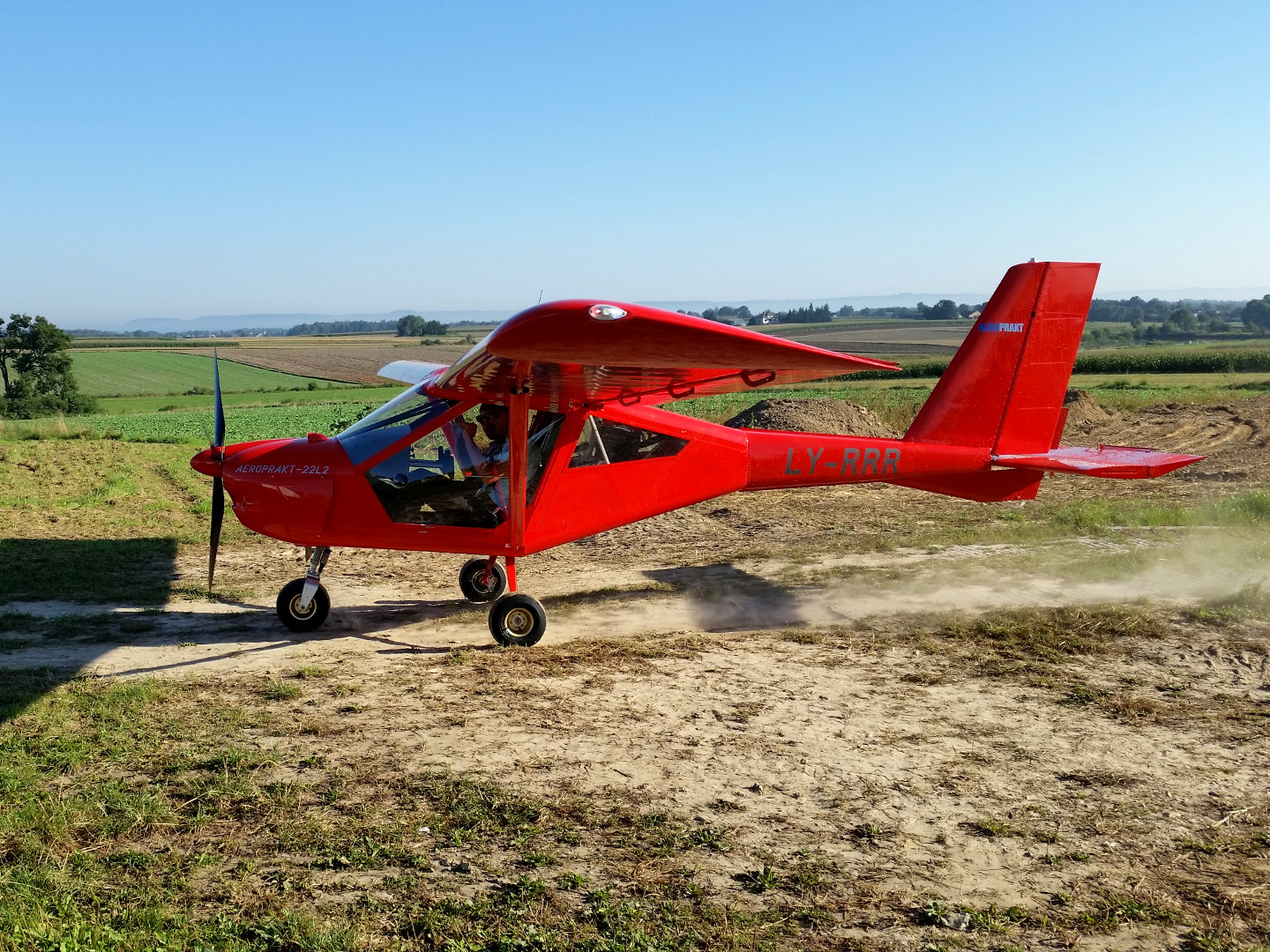

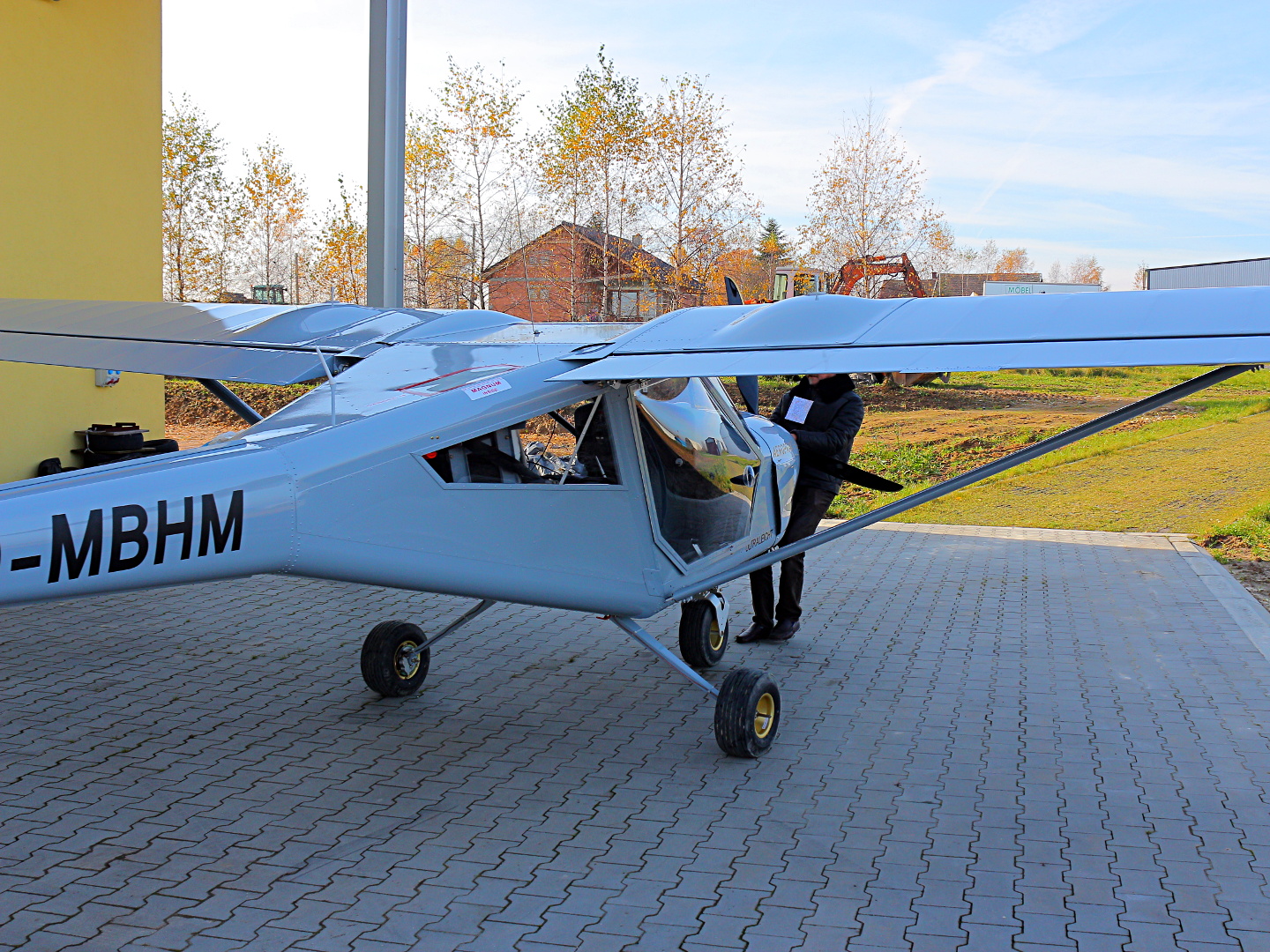

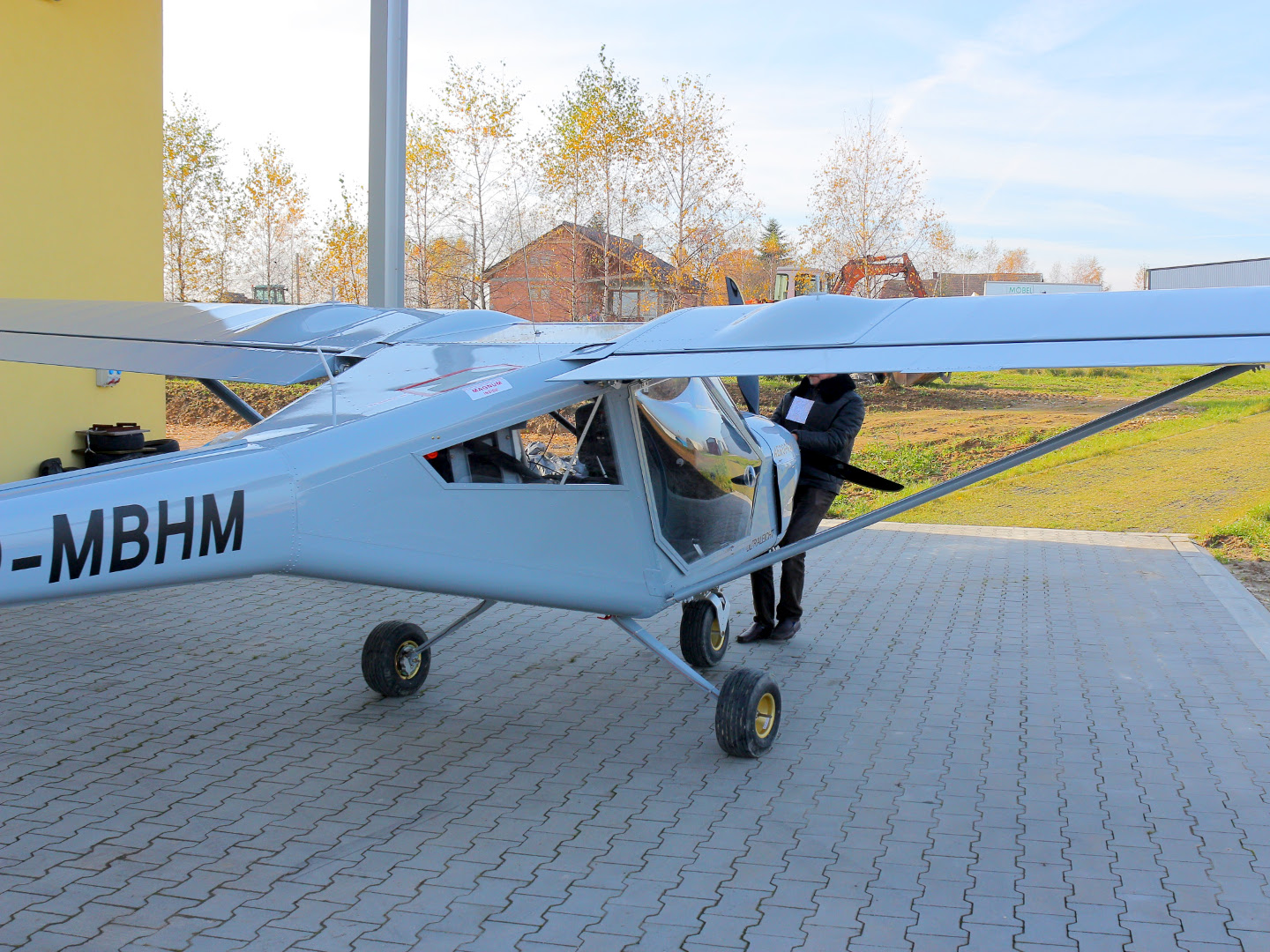

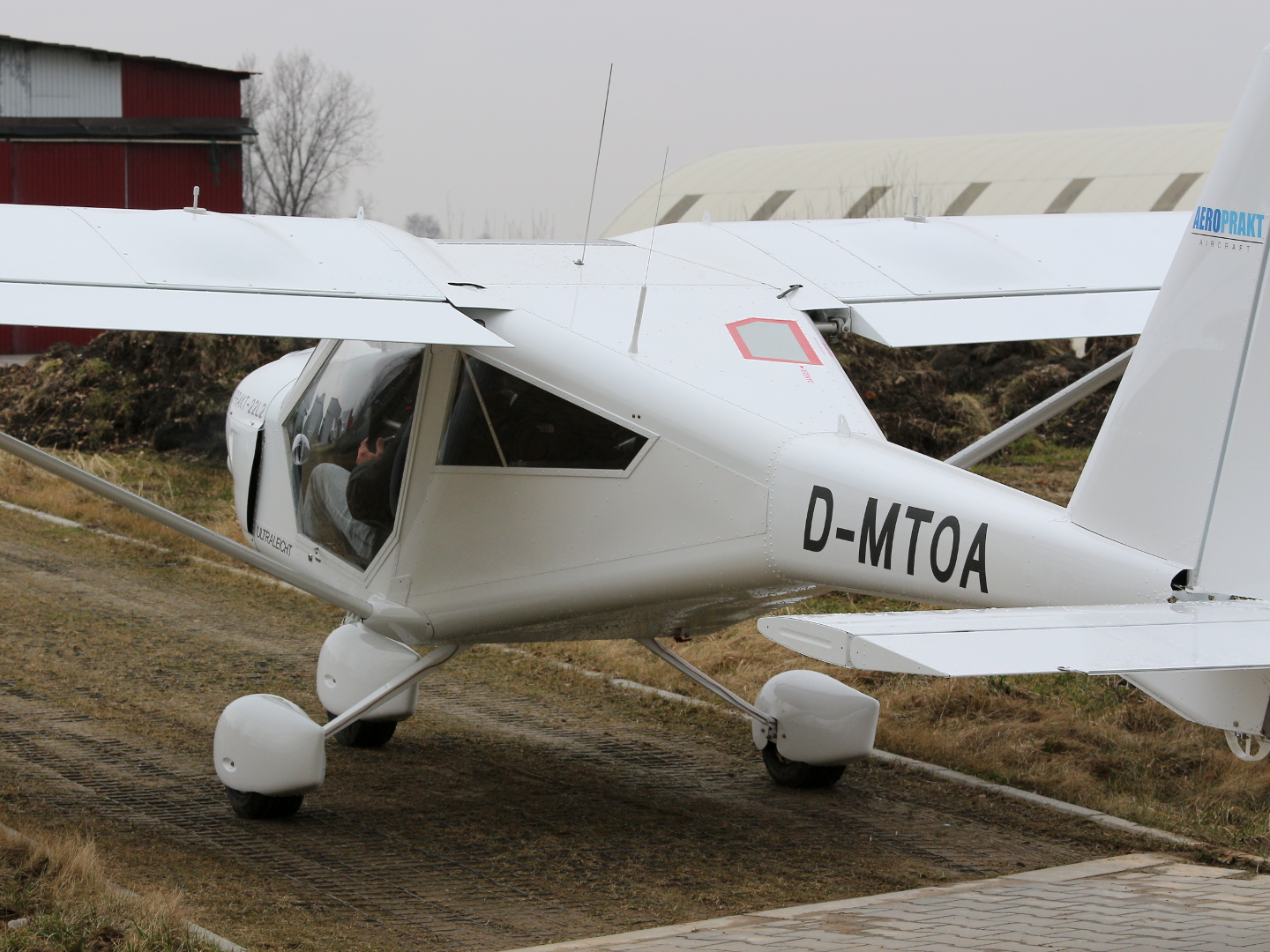

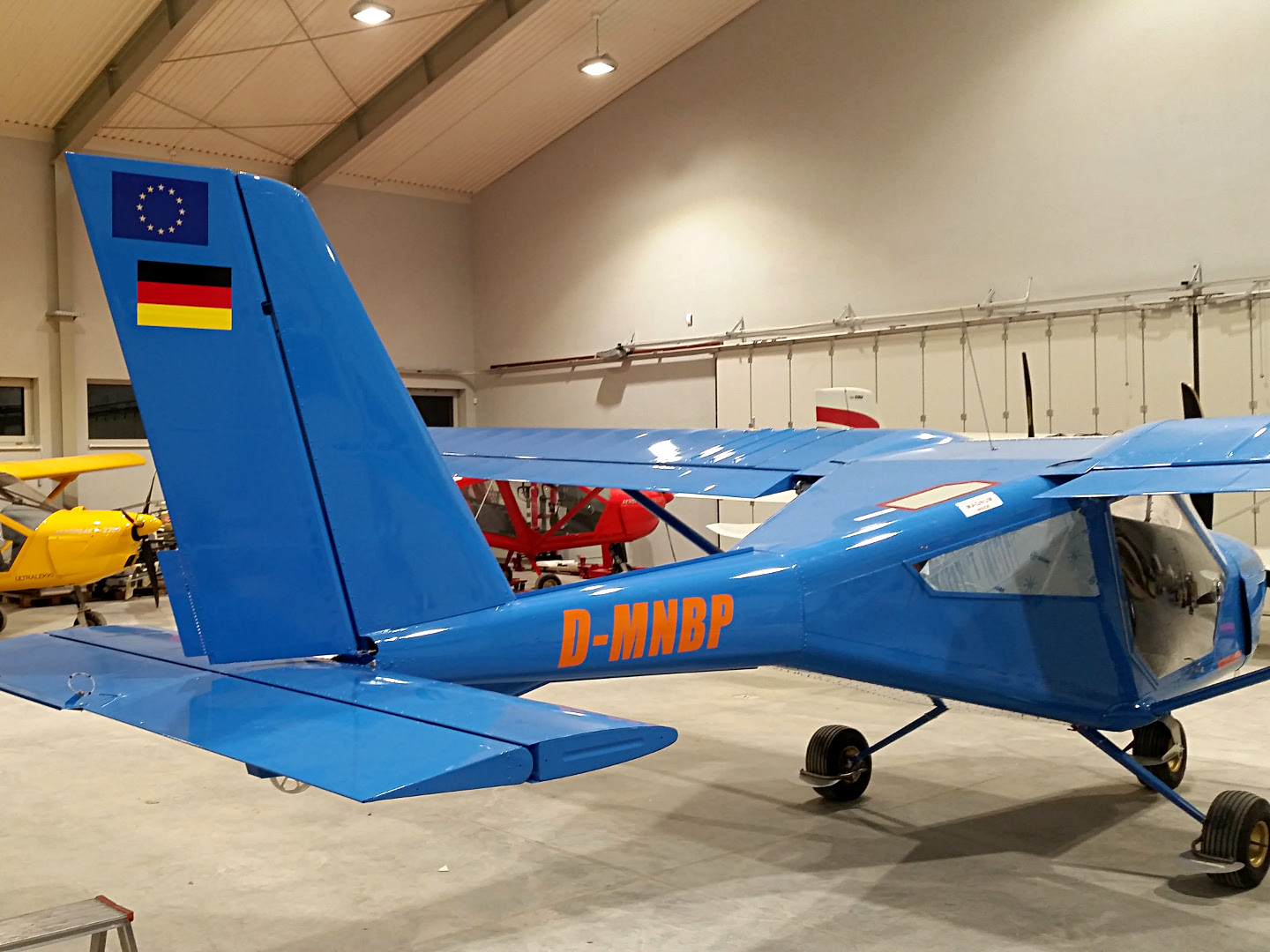

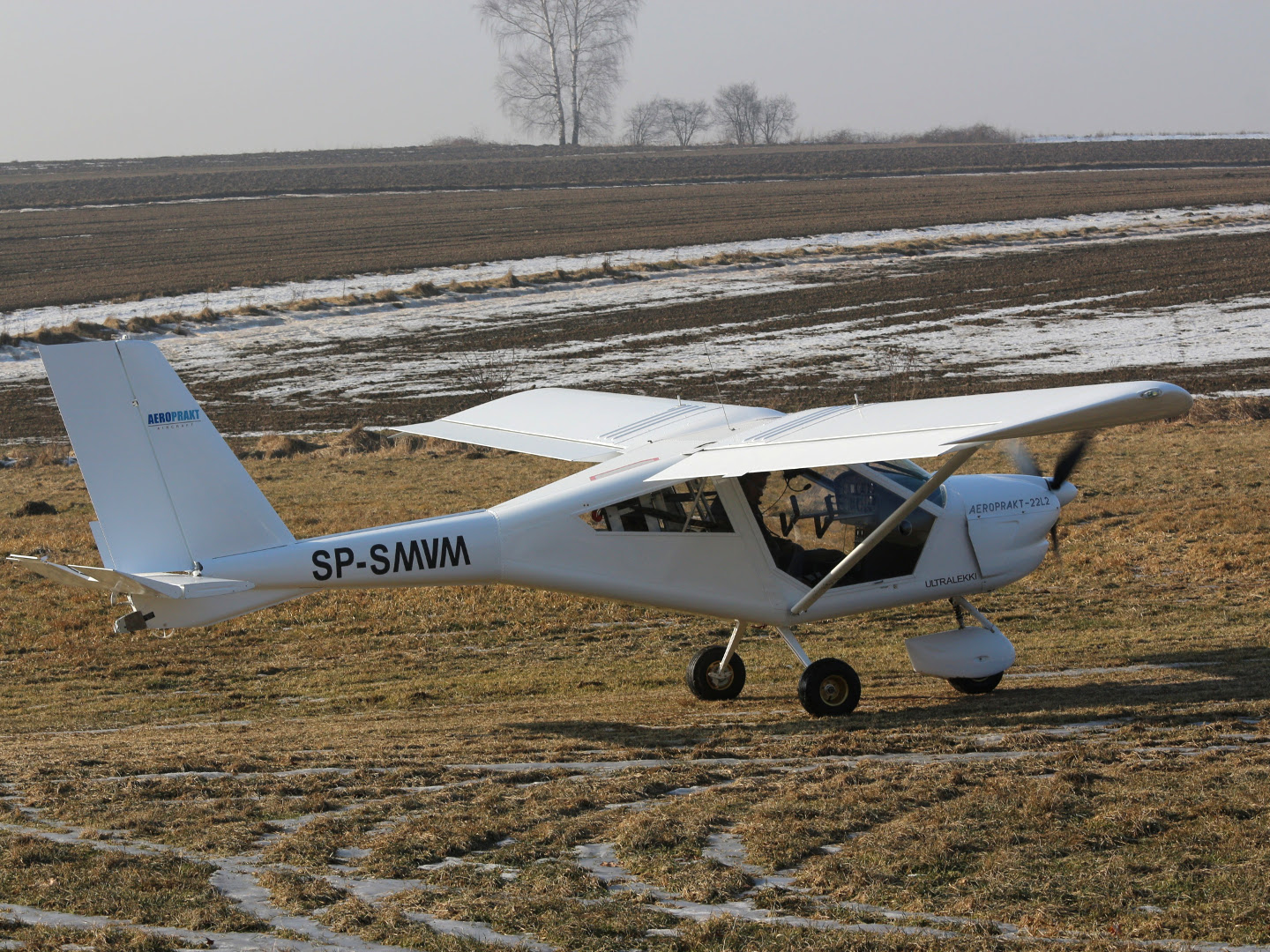

Aluminum skin
Standard glazing
Aluminum skin
Standard glazing
Aluminum skin
Aluminum skin
Aluminum skin
Aluminum skin
-
Left side with aluminum skin, right side standard
-
-
-
-
-
-
-
-
-
Wheel accessories: |
||
Type | Weight difference | Remarks |
Standard | ||
nothing | ||
Options | ||
wheel spats | + 2,3 - 2,5 kg (wheel size dependent) | recommended for concrete/asphalt and well mantained grass runways. Only for small and middle wheels |
mud guards | + 1,1 - 1,5 kg (wheel size dependent) | recommended for wet or snowy runways |

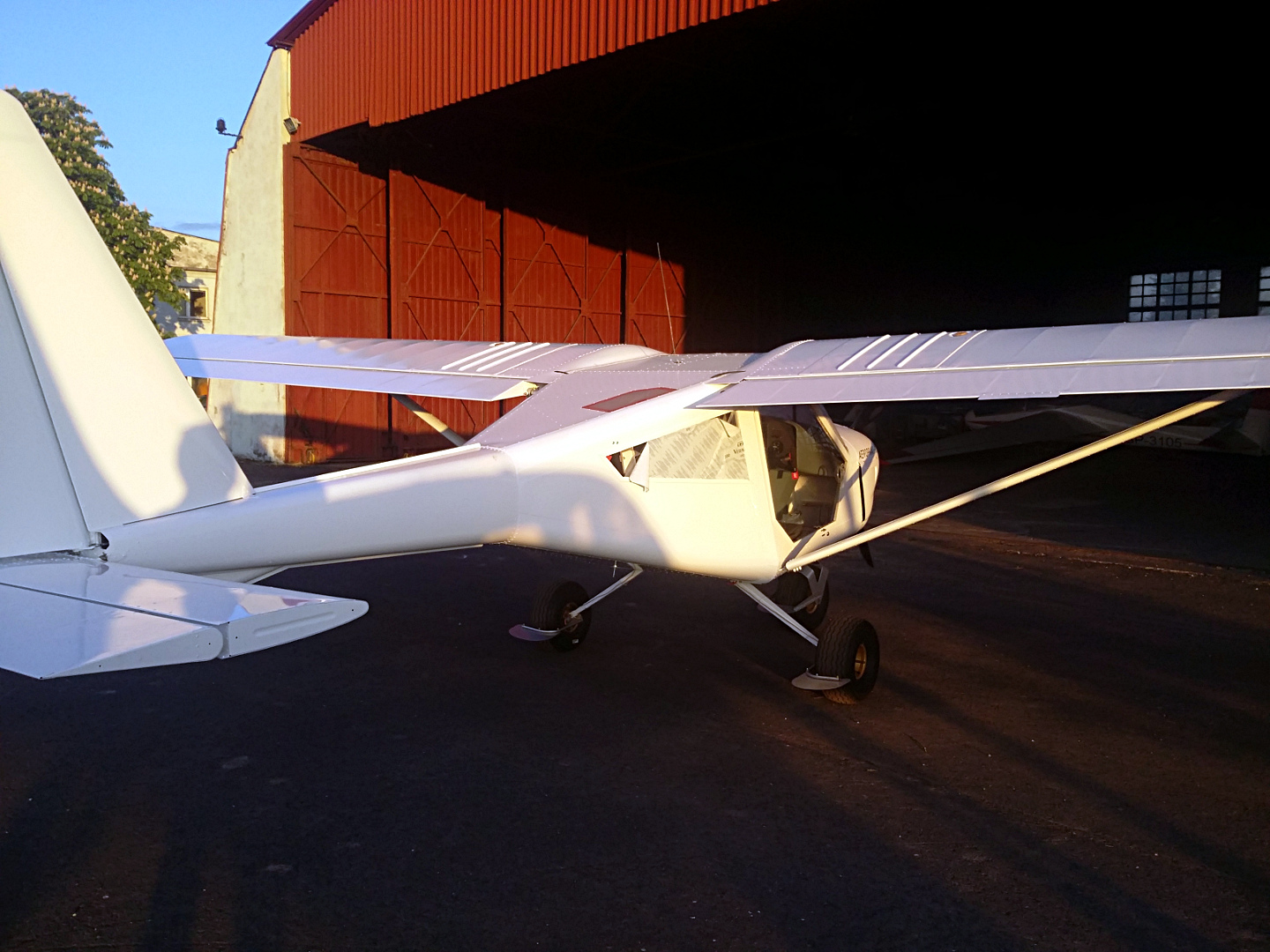

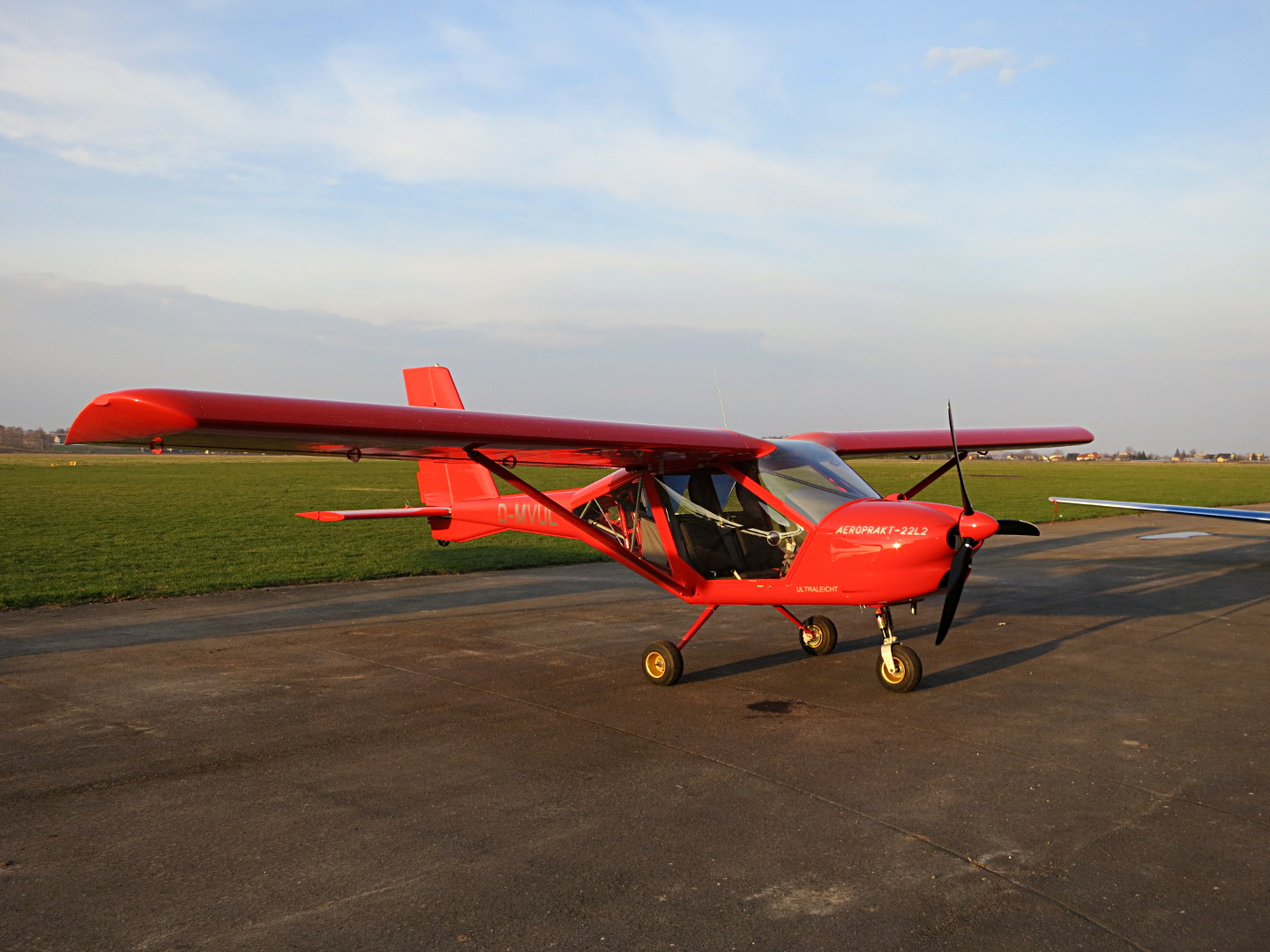

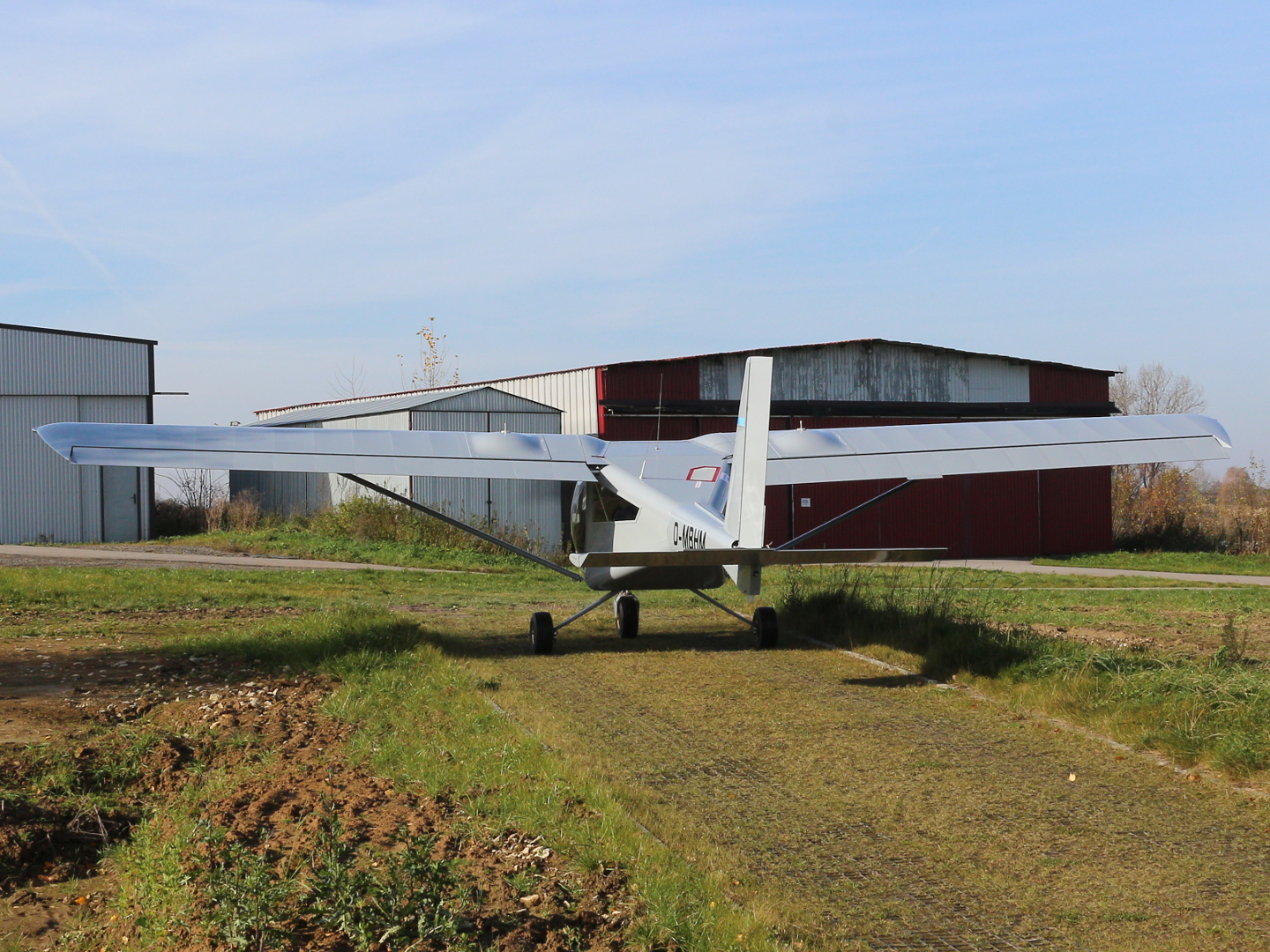

Standard
Standard
Standard
Mud gueard & spats
Mud guards
Mud guards
Mud guard
Mud guard

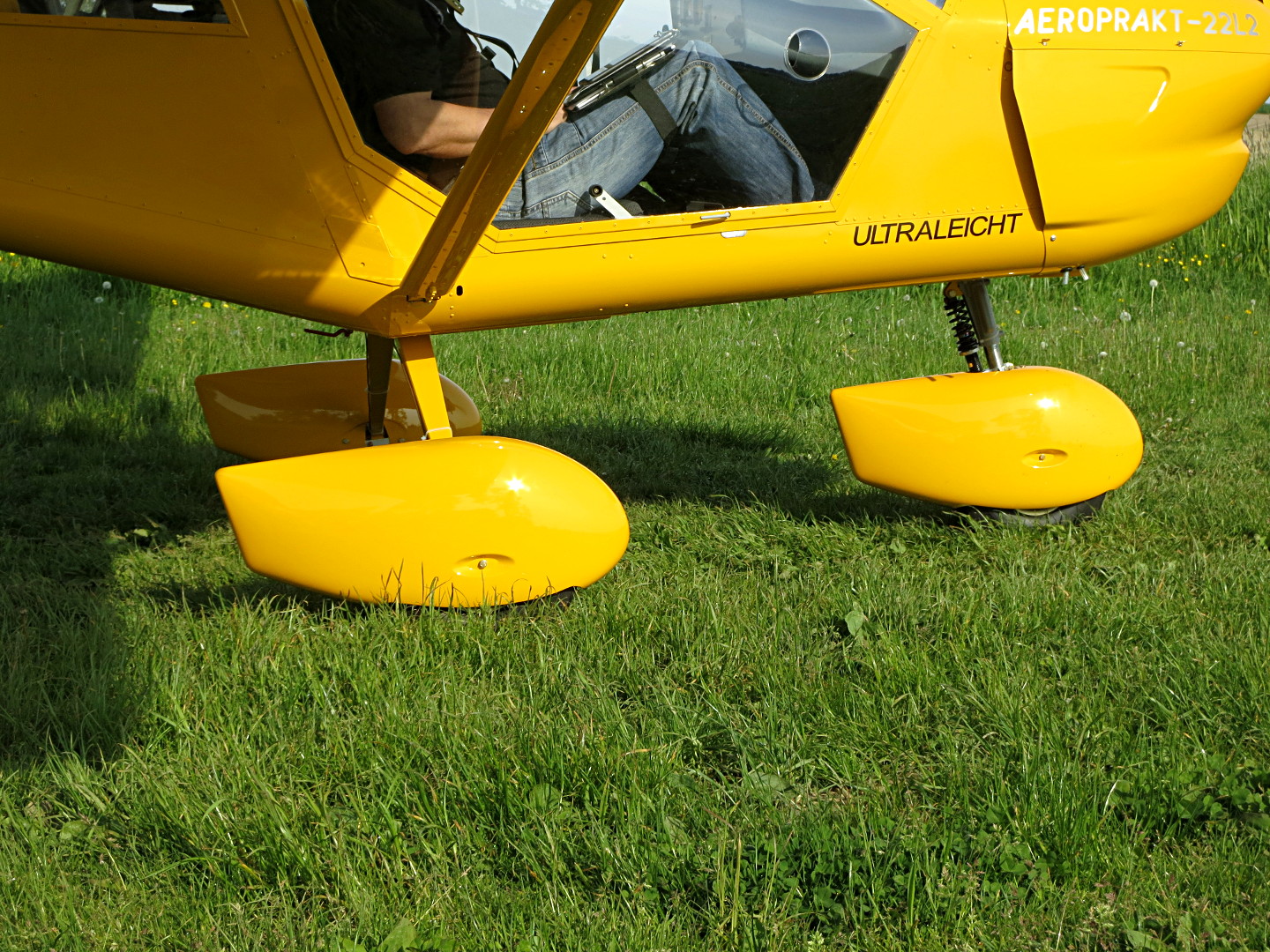

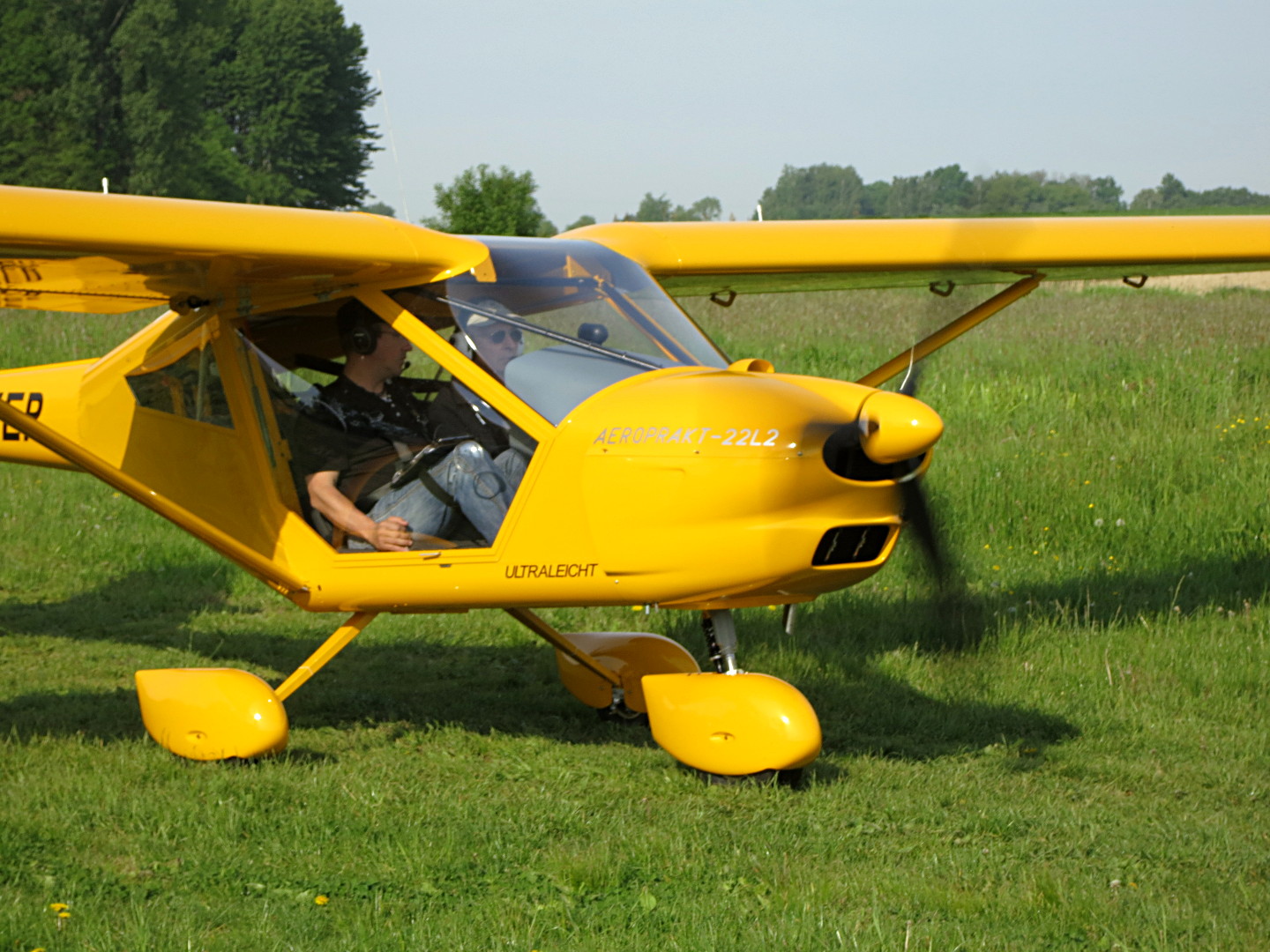

Wheel spats
Wheel spats
Wheel spats
-
Standard
-
Standard
-
Standard
-
Left - wheel spats
Right - wheel fairing -

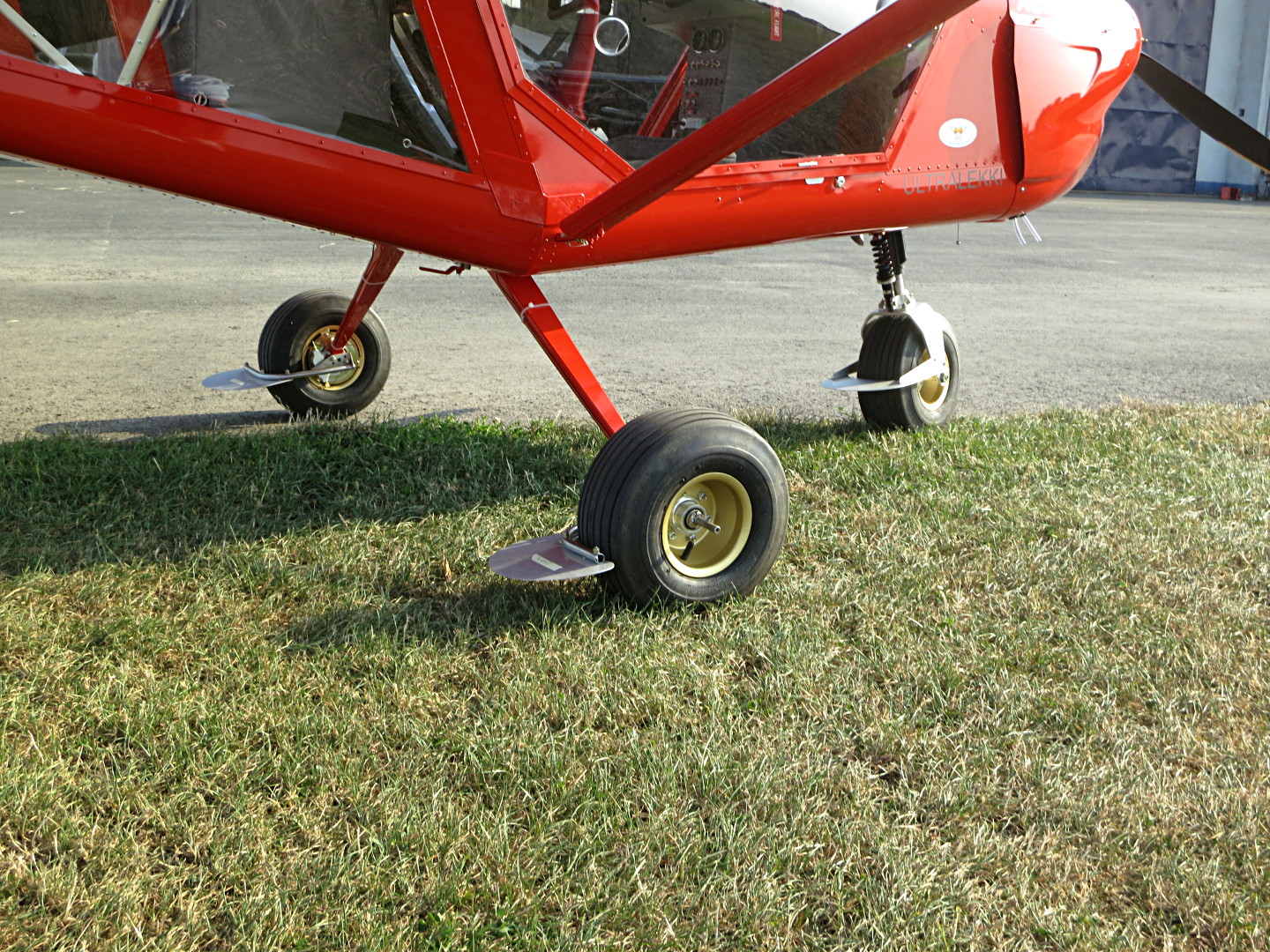

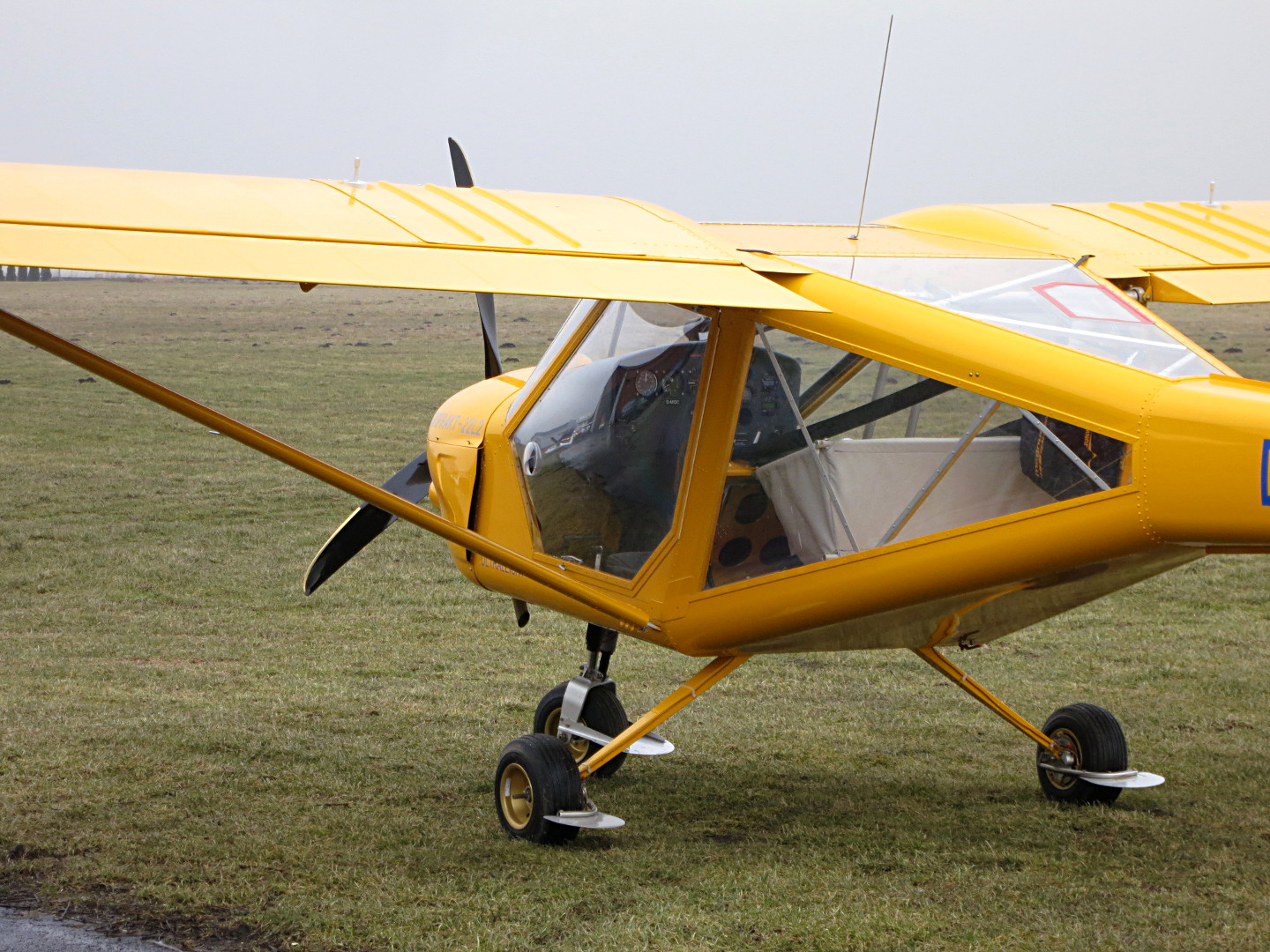

Mud guards
-
Mud guards
-

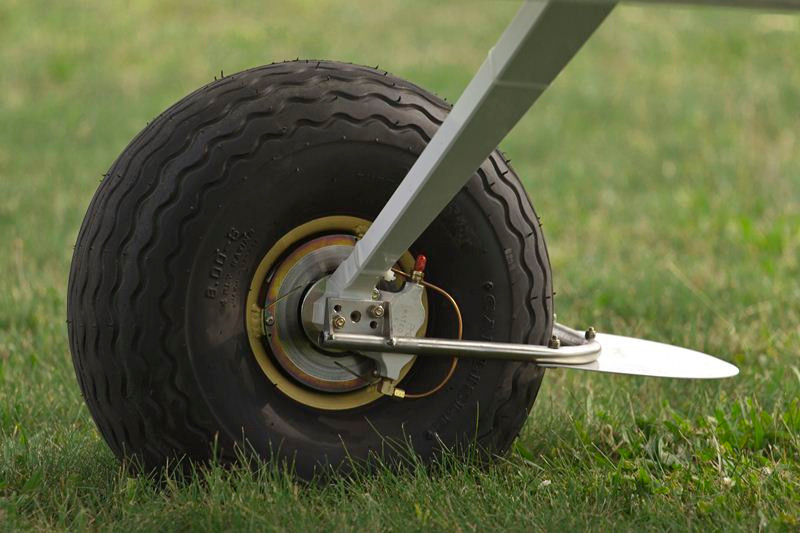

Mud guard - main landing gear
-

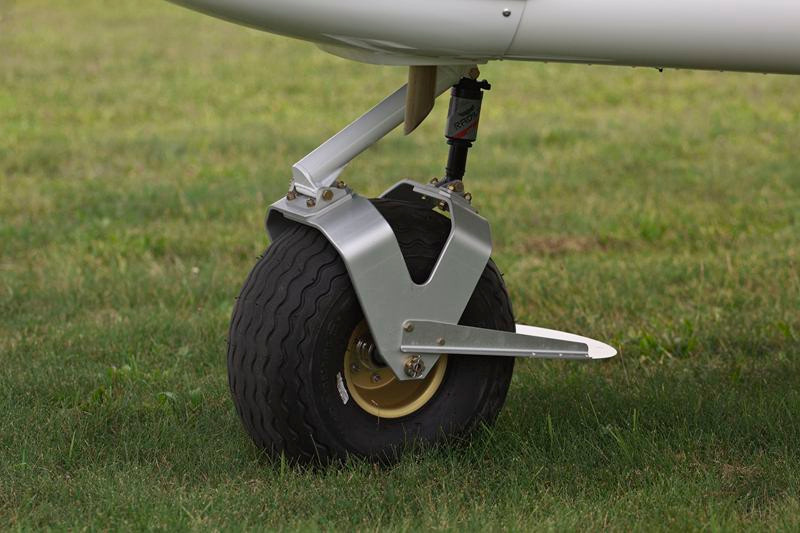

Mud guard - nose leg
-

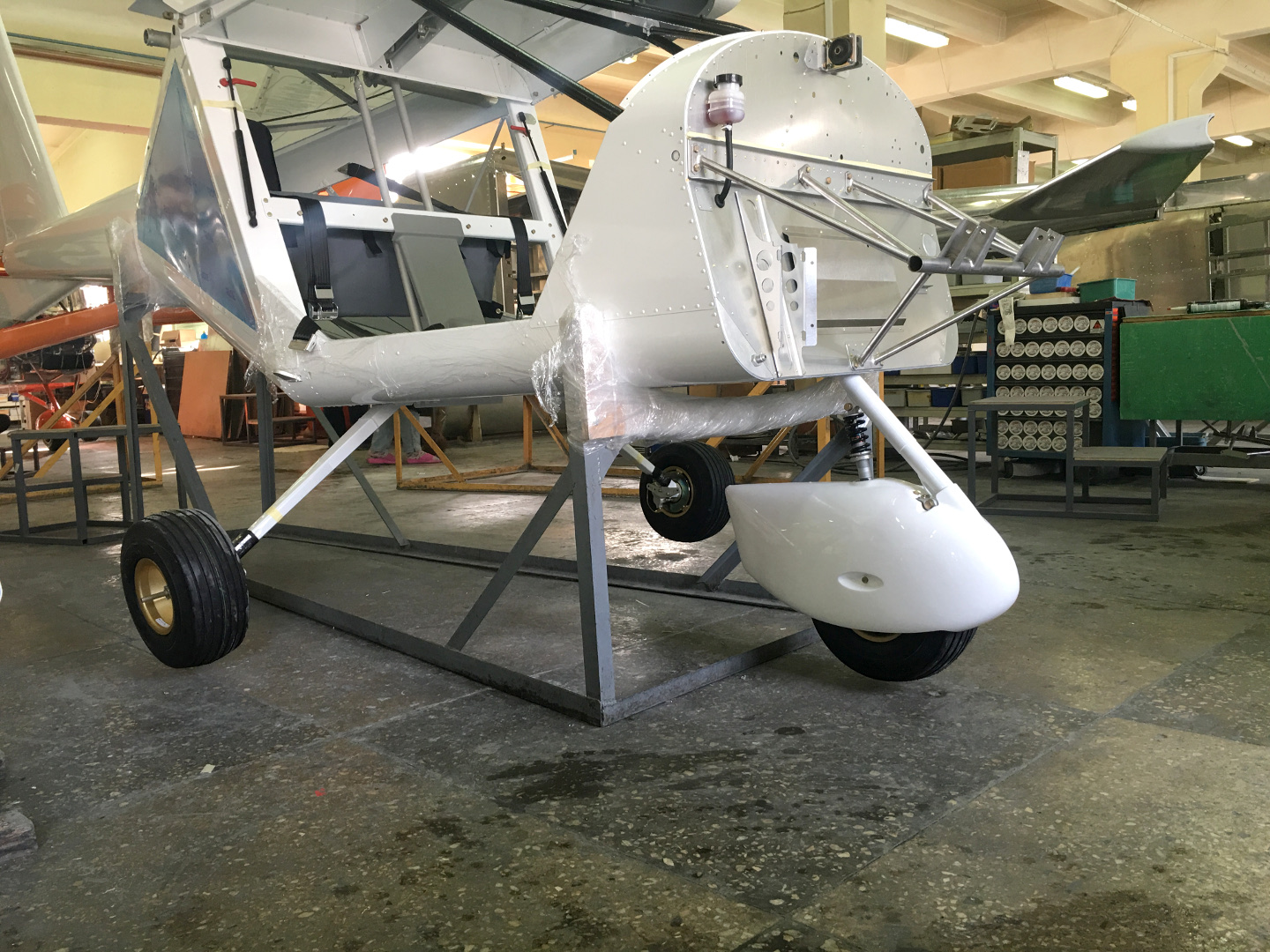

Wheel spats
-
Wheel spats
-
Wheel spats
:Luggage container maximum load: 20 kg |
||
Type | Weight difference | Remarks |
Standard | ||
fabric | access from cockpit | |
Options | ||
metal (Kelpie type) | access from cockpit as well as from outside through external door |
Standard
Standard
Standard
Metal
Metal
Metal
-

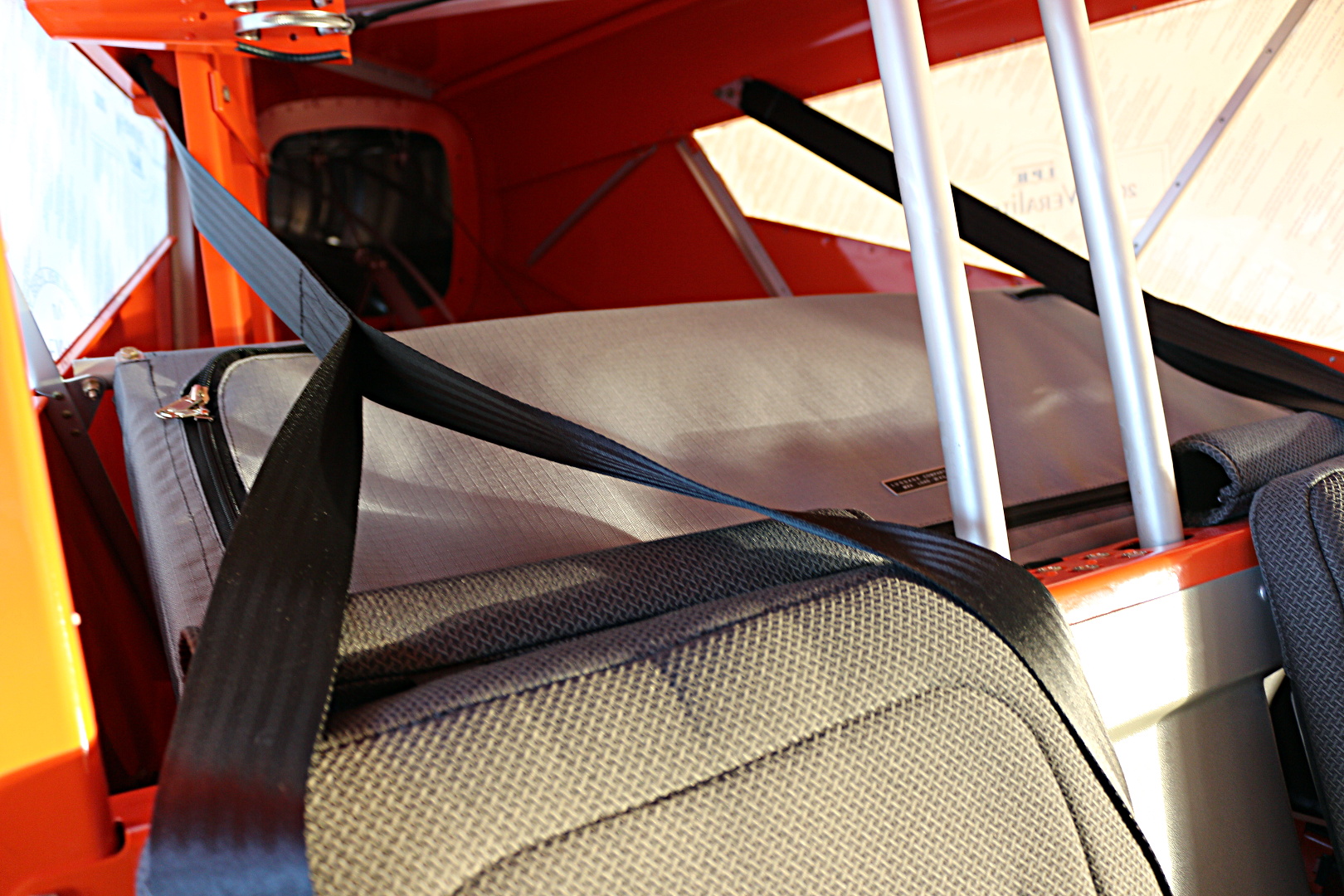

Standard fabric luggage container
-
Standard fabric luggage container
-
Standard fabric luggage container
-

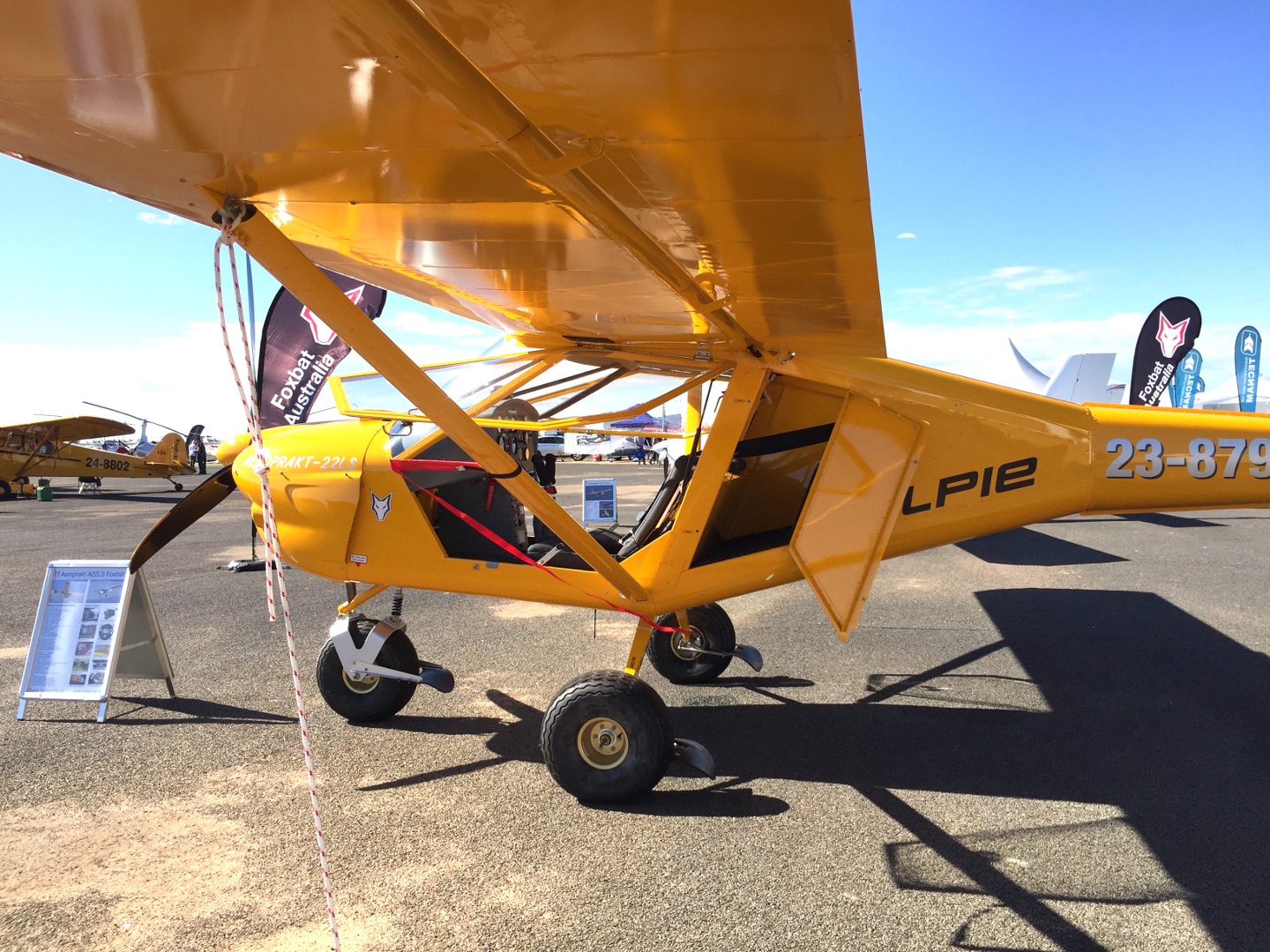

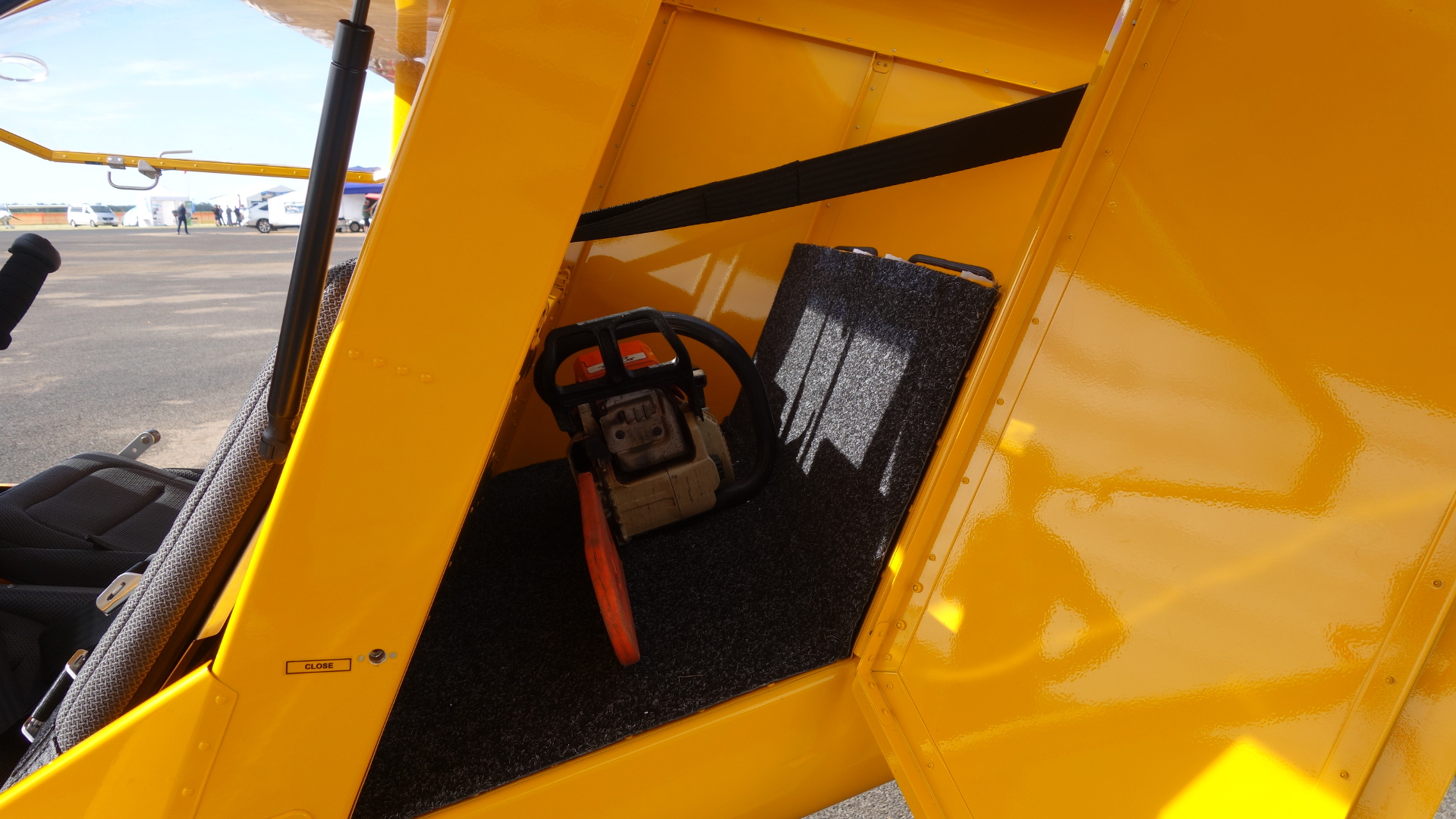

Metal luggage container (Kelpie type) accessible from outside as well as from inside
-
Metal luggage container (Kelpie type) accessible from outside as well as from inside
-
Metal luggage container (Kelpie type) accessible from outside as well as from inside
